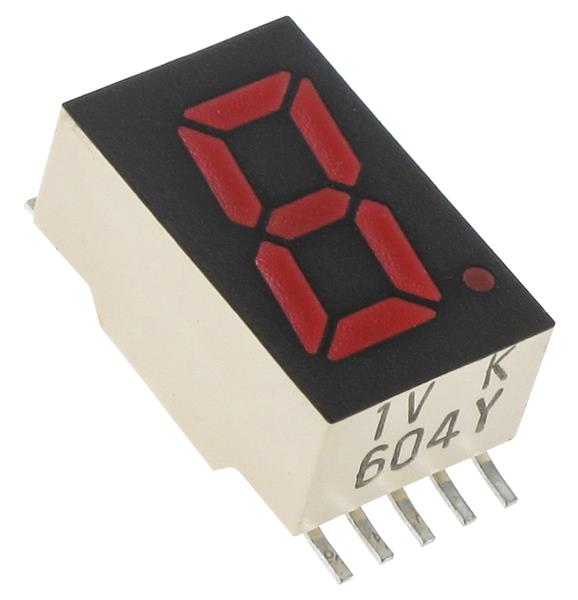

LF-3011MA

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

10-SMD, Gull Wing

Fabrika Tedarik Süresi

12 Weeks

Yayın Yılı

2001

Millicandela Rating

10mcd

RoHS Durumu

ROHS3 Compliant

Current Test

10mA

Seri

LF-3011 A/K

Power Dissipation Max

480mW

Wavelength Peak

563nm

Common Pin

Common Anode

Parça Durumu

Active

Forward Currentmax

0.02A

Display Type

7-Segment

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Voltage Forward Vf Typ

2.1V

Kurşunsuz

Lead Free

Boyut / Ölçü

0.433 Hx0.268W x 0.197 D 11.00mmx6.80mmx5.00mm

Operating Temperature Max

75°C

Renk

Green

Digitalpha Size

0.32 8.00mm

Fonksiyon Sayısı

1

Display Height

8mm

Operating Temperature Min

-25°C

Number Of Characters

1
