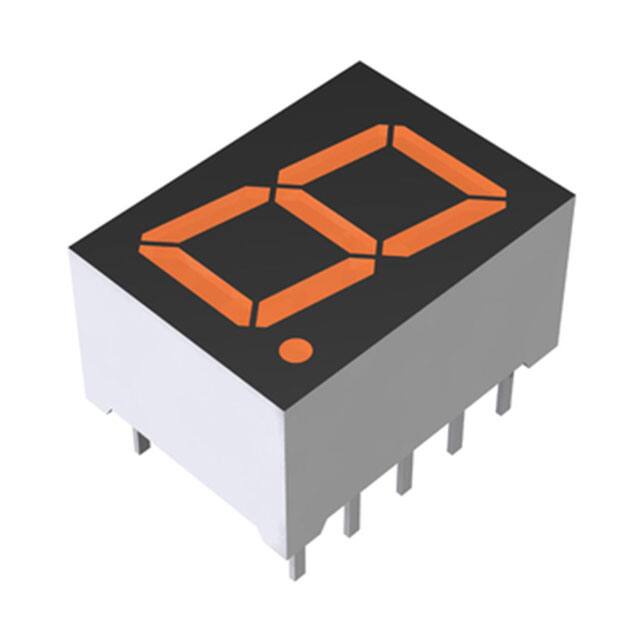

LAP-401DD

Specifications

Boyut / Ölçü

0.512 Hx0.378W x 0.276 D 13.00mmx9.60mmx7.00mm

Fabrika Tedarik Süresi

1 Weeks

Forward Voltagemax

2.6V

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Digitalpha Size

0.40 10.16mm

Operating Temperature Min

-25°C

Seri

LAP-401 D/N

Number Of Characters

1

Yayın Yılı

2010

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e1

Parça Durumu

Active

Millicandela Rating

250mcd

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Wavelength Peak

605nm

Renk

Orange

Current Test

20mA

Common Pin

Common Anode

Display Type

7-Segment

Fonksiyon Sayısı

1

Kılıf / Paket

10-DIP (0.300, 7.62mm)

Power Dissipation Max

448mW

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Operating Temperature Max

75°C

Voltage Forward Vf Typ

1.9V

Forward Currentmax

0.02A
