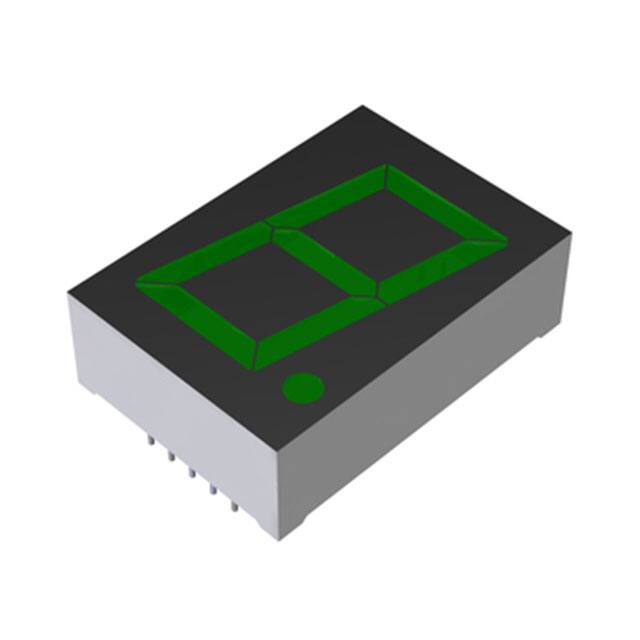

LA-101MA

Specifications

Operating Temperature Min

-25°C

Number Of Characters

1

Forward Currentmax

0.02A

Renk

Green

Common Pin

Common Anode

RoHS Durumu

ROHS3 Compliant

Current Test

10mA

Display Height

25.4mm

Fabrika Tedarik Süresi

1 Weeks

Forward Voltagemax

5.6V

Fonksiyon Sayısı

1

Kılıf / Paket

10-DIP (1.200, 30.48mm)

Seri

LA-101AK

Digitalpha Size

1.00 25.40mm

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Millicandela Rating

16mcd

Parça Durumu

Active

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

JESD-609 Kodu

e1

Display Type

7-Segment

Boyut / Ölçü

1.339 Hx0.945W x 0.413 D 34.00mmx24.00mmx10.50mm

Voltage Forward Vf Typ

2.1V

Wavelength Peak

563nm

Power Dissipation Max

640mW

Operating Temperature Max

75°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes
