Specifications
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Surface Mount
- Terminal Kaplaması
- Tin/Bismuth (Sn/Bi)
- Besleme Gerilimi
- 2.2V~6V
- Motor Type Ac Dc
- Brushless DC (BLDC)
- Supply Voltagemax Vsup
- 6V
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 3 weeks ago)
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)

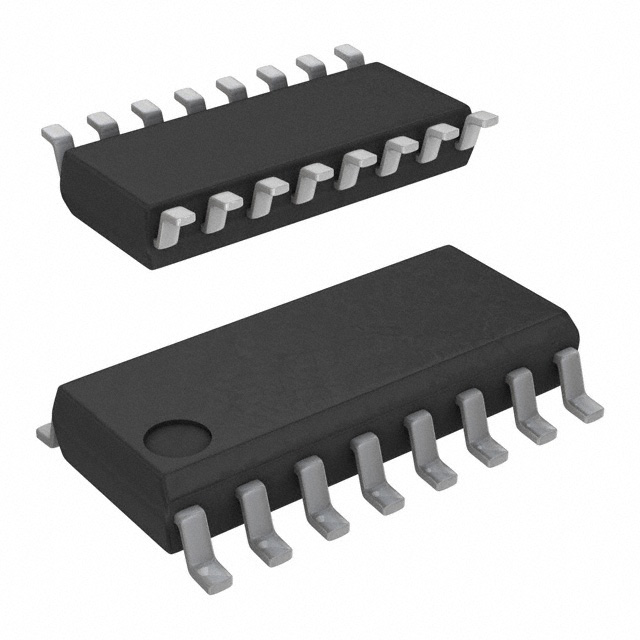

- Kılıf / Paket
- 16-LSSOP (0.173, 4.40mm Width)
- Analog Ic Other Type
- BRUSHLESS DC MOTOR CONTROLLER
- Supply Voltagemin Vsup
- 2.2V
- Yayın Yılı
- 2007
- Besleme Gerilimi
- 5V
- Parça Durumu
- Obsolete
- Nominal Supply Current
- 2.5mA
- Operating Supply Voltage
- 6V
- Output Configuration
- Half Bridge (3)
- Terminal Formu
- GULL WING
- Function
- Driver - Fully Integrated, Control and Power Stage
- Power Supplies
- 5V
- Radyasyon Dayanımı
- No
- Genişlik
- 4.4mm
- Kurşunsuz
- Lead Free
- Terminal Adımı
- 0.65mm
- Voltage Load
- 2.2V~6V
- Montaj
- Surface Mount
- JESD-609 Kodu
- e6
- Uzunluk
- 5.2mm
- Kurşunsuz Kodu
- yes
- Terminal Sayısı
- 16
- Number Of Outputs
- 1
- Logic Function
- AND
- Pin Sayısı
- 16
- Çalışma Sıcaklığı
- -30°C~95°C TA
- Power Dissipation
- 300mW
- Ambalaj
- Tape & Reel (TR)
- Interface
- PWM
- Terminal Pozisyonu
- DUAL
- Applications
- Fan Motor Driver
