Specifications
- Voltage Load
- 10V~45V
- Montaj
- Through Hole
- Step Resolution
- 1, 1/2, 1/4, 1/8, 1/16
- Motor Type
- Stepper
- Terminal Sayısı
- 28
- Applications
- General Purpose
- Supply Currentmax Isup
- 5mA
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Yayın Yılı
- 1999
- Temel Parça No
- LB11847
- Radyasyon Dayanımı
- No
- Kurşunsuz Kodu
- yes
- Terminal Kaplaması
- Tin/Bismuth (Sn/Bi)
- Terminal Pozisyonu
- DUAL
- Montaj Tipi
- Through Hole
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Tube
- Kurşunsuz
- Lead Free
- Output Configuration
- Half Bridge (4)
- Çıkış Akımı
- 1.5A
- Reach Svhc
- No SVHC
- Çalışma Sıcaklığı
- -20°C~85°C TA
- Besleme Gerilimi
- 4.75V~5.25V
- Number Of Outputs
- 1
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 1 month ago)
- Fabrika Tedarik Süresi
- 4 Weeks
- Parça Durumu
- Obsolete
- Power Supplies
- 545V
- Jesd30 Code
- R-PDIP-T28

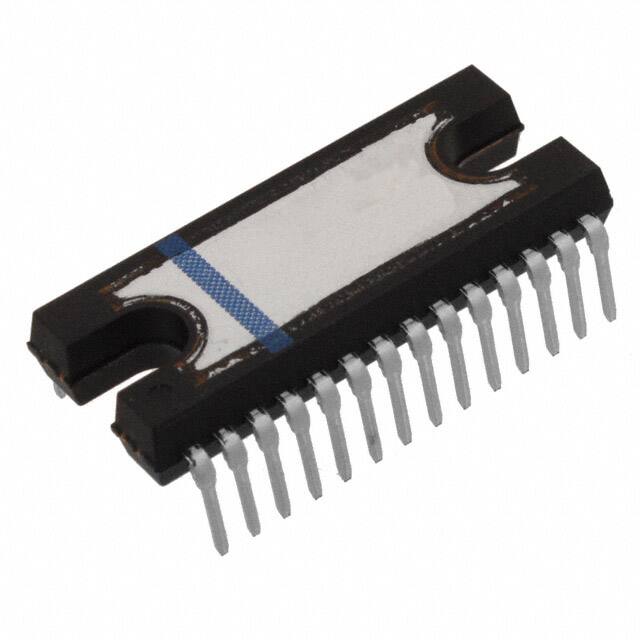

- Kılıf / Paket
- 28-SDIP (0.500, 12.70mm) Exposed Pad
- Interface
- Parallel
- JESD-609 Kodu
- e6
- Function
- Driver - Fully Integrated, Control and Power Stage
- Motor Type Stepper
- Bipolar
- Pin Sayısı
- 30
- Tedarikçi Cihaz Paketi
- 28-HDIP
- Nominal Supply Current
- 26mA
