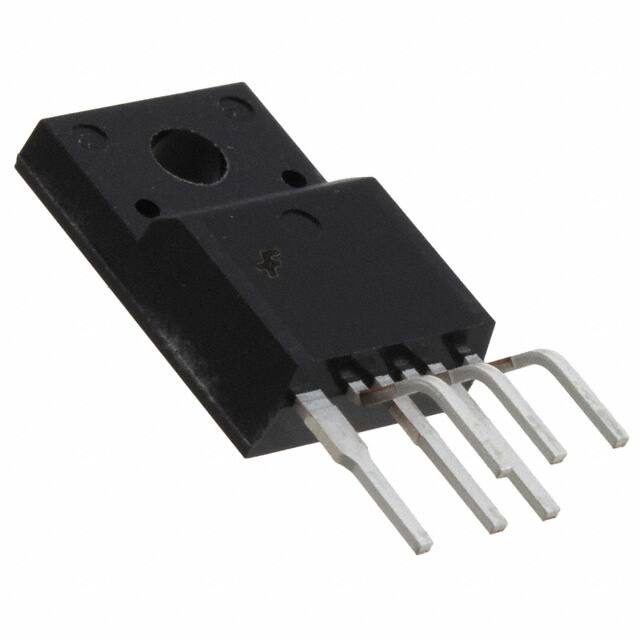

FSGM0465RBUDTU

Specifications

Output Current

2.45A

Terminal Sayısı

6

Analog Ic Other Type

SWITCHING CONTROLLER

Güç (Watt)

70W

Montaj Tipi

Surface Mount

Ürün Durumu

Obsolete

Turn Off Delay Time

30 ns

Internal Switchs

Yes

Frequency Switching

66kHz

Nominal Supply Current

2.5mA

Topology

Flyback

Control Mode

CURRENT-MODE

Seri

FPS™

Max Supply Current

2mA

Control Technique

PULSE WIDTH MODULATION

Max Power Dissipation

70W

Kılıf / Paket

TO-220-6 Full Pack, Formed Leads

Temel Parça No

FSGM0465R

RoHS Durumu

ROHS3 Compliant

Duty Cycle

70%

Voltage Start Up

12V

Number Of Outputs

1

Input Voltagenom

14V

Max Duty Cycle

75 %

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit

Min Breakdown Voltage

650V

Direnç

2.6Ohm

Pin Sayısı

6

Voltage Breakdown

650V

Power Dissipation

45W

Voltage Supply Vccvdd

7.5V~26V

Weight

3.61g

Tedarikçi Cihaz Paketi

TO-220F-6L (U-Forming)

Parça Durumu

Obsolete

Çalışma Sıcaklığı

-40°C~125°C TJ

Montaj

Through Hole

Terminal Pozisyonu

ZIG-ZAG

Fonksiyon Sayısı

1

Nem Hassasiyeti (MSL)

3 (168 Hours)

Ambalaj

Tube
