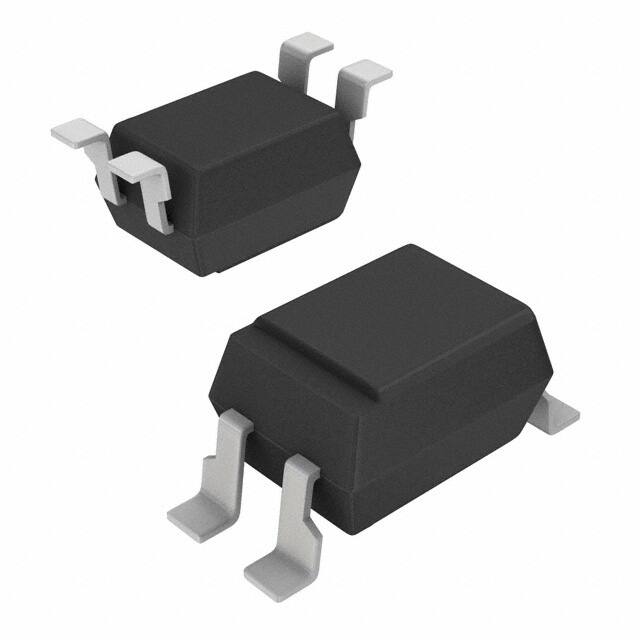

FOD617BSD

Specifications

Voltage Output Max

70V

Current Transfer Ratio Max

125% @ 10mA

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Forward Current

50mA

Giriş Tipi

DC

Current Dc Forward If Max

50 mA

Collectoremitter Saturation Voltage

400mV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Surface Mount

Power Dissipation

200mW

Çıkış Tipi

Transistor

Voltage Isolation

5000Vrms

Max Collector Current

50mA

Rise Time

18μs

Fall Time Typ

18 μs

Configuration

SINGLE

Max Power Dissipation

200mW

Kurşunsuz Kodu

yes

Terminal Kaplaması

MATTE TIN

Number Of Channels

1

Current Output Channel

50mA

Vce Saturation Max

400mV

JESD-609 Kodu

e3

Output Voltage

70V

Reverse Breakdown Voltage

6V

Output Current Per Channel

50mA

Number Of Elements

1

Collector Emitter Voltage Vceo

70V

Collemtr Bkdn Voltagemin

70V

Rise Fall Time Typ

4μs 3μs

Paket

Bulk

Pin Sayısı

4

Tedarikçi Cihaz Paketi

4-SMD

Current Transfer Ratiomin

63% @ 10mA

Çalışma Sıcaklığı

-55°C~110°C

Reach Svhc

No SVHC

Dark Currentmax

50nA

Additional Feature

UL RECOGNIZED
