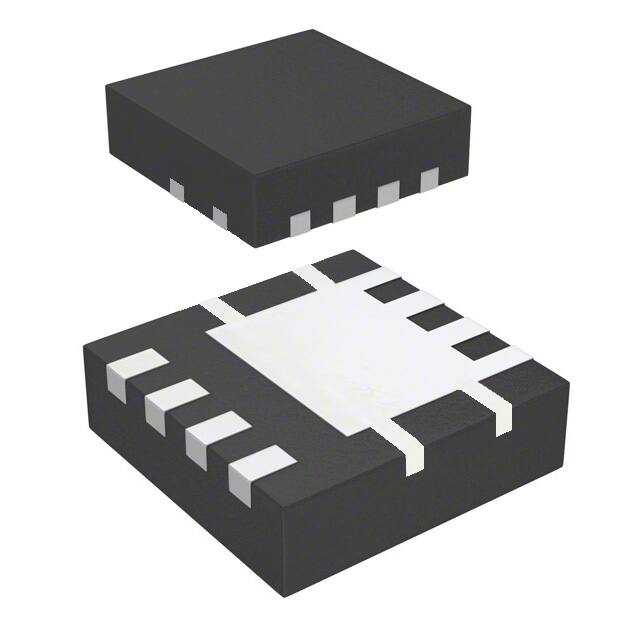

FDM3300NZ

Specifications

Çalışma Sıcaklığı

-55°C~150°C TJ

Pin Sayısı

8

Number Of Elements

2

Case Connection

DRAIN

Parça Durumu

Obsolete

Transistor Element Material

SILICON

Terminal Kaplaması

NOT SPECIFIED

Terminal Sayısı

5

Pulsed Drain Currentmax Idm

40A

Qualification Status

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Current Continuous Drain Id25

10A

Transistor Application

SWITCHING

Rds On Max Id Vgs

23m Ω @ 10A, 4.5V

Montaj Tipi

Surface Mount

Seri

PowerTrench®

Jesd30 Code

R-PDSO-F5

Drain To Source Voltage Vdss

20V

Power Max

900mW

Gate Charge Qg Max Vgs

17nC @ 4.5V

RoHS Durumu

ROHS3 Compliant

Yüzey Montaj

YES

Drainsource On Resistancemax

0.023Ohm

Input Capacitance Ciss Max Vds

1610pF @ 10V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Operating Mode

ENHANCEMENT MODE

Tedarikçi Cihaz Paketi

8-MLP (3x3)

Kurşunsuz Kodu

yes

Fet Feature

Logic Level Gate

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Configuration

COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

Ds Breakdown Voltagemin

20V

Vgsth Max Id

1.5V @ 250μA

Terminal Formu

FLAT

REACH Uyumluluk Kodu

unknown

Kılıf / Paket

8-PowerVDFN

Fet Type

2 N-Channel (Dual)

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Drain Currentmax Abs Id

10A
