Specifications
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Parça Durumu
- Obsolete
- Collectoremitter Saturation Voltage
- 700mV
- Yükseklik
- 4.95mm
- Transistor Application
- SWITCHING
- Min. Çalışma Sıcaklığı
- -55°C

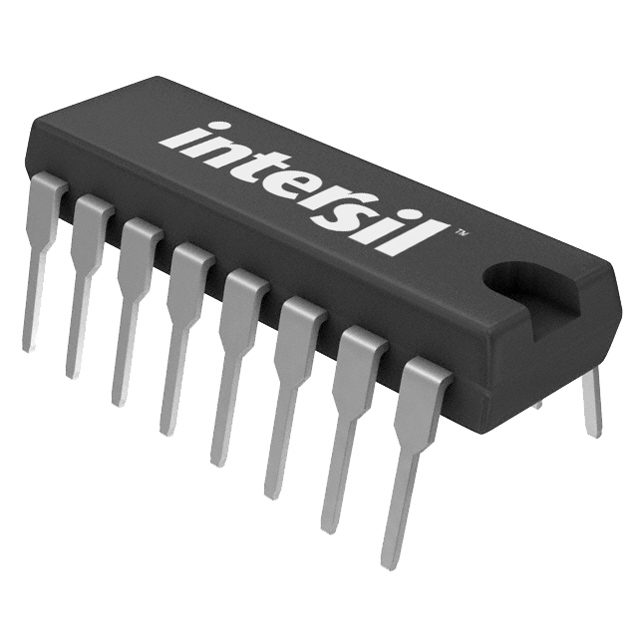

- Kılıf / Paket
- 16-DIP (0.300, 7.62mm)
- Pin Sayısı
- 16
- Polarity
- NPN
- Dc Current Gain Hfe Min Ic Vce
- 40 @ 50mA 3V
- Frequency Transition
- 450MHz
- Collector Base Voltage Vcbo
- 20V
- Power Dissipation
- 500mW
- Vce Saturation Max Ib Ic
- 700mV @ 5mA, 50mA
- Current Collector Cutoff Max
- 10μA
- Gain Bandwidth Product
- 450MHz
- Terminal Sayısı
- 16
- Qualification Status
- Not Qualified
- Collectoremitter Breakdown Voltage
- 15V
- Reach Svhc
- No SVHC
- Power Dissipation Max
- 500mW
- Power Max
- 500mW
- JESD-609 Kodu
- e3
- Terminal Pozisyonu
- DUAL
- Dc Current Gainmin Hfe
- 40
- Max Collector Current
- 100mA
- Currentcollector Ic Max
- 100mA
- Maks. Çalışma Sıcaklığı
- 125°C
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Çalışma Sıcaklığı
- 150°C TJ
- Montaj
- Through Hole
- Montaj Tipi
- Through Hole
- RoHS Durumu
- ROHS3 Compliant
- Ambalaj
- Tube
- Contact Plating
- Tin
- Frequencymax
- 450MHz
- Transistor Type
- 5 NPN
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Uzunluk
- 19.68mm
- Collector Emitter Voltage Vceo
- 15V
