Volume pricing
- 1+ pcs$1.97
- 10+ pcs$1.86
- 100+ pcs$1.75
- 500+ pcs$1.65
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj
- Through Hole
- Polaritychannel Type
- N-CHANNEL
- Max Power Dissipation
- 30W
- Td Onoff25c
- 30ns/42ns
- Pin Sayısı
- 3
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Fabrika Tedarik Süresi
- 16 Weeks
- Collector Emitter Voltage Vceo
- 2.5V

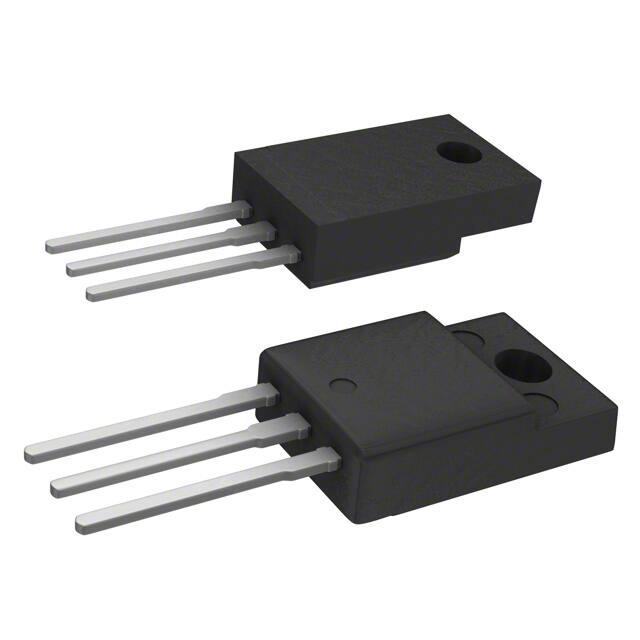

- Kılıf / Paket
- TO-220-3 Full Pack
- Parça Durumu
- Obsolete
- Yayın Yılı
- 2012
- ECCN Kodu
- EAR99
- Ambalaj
- Tube
- Element Configuration
- Single
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Igbt Type
- Trench
- Max Collector Current
- 20A
- Çalışma Sıcaklığı
- 150°C TJ
- Gate Charge
- 13nC
- Reverse Recovery Time
- 70 ns
- Test Conditions
- 300V, 10A, 5 Ω, 15V
- Giriş Tipi
- Standard
- Switching Energy
- 100μJ (on), 130μJ (off)
- Vceon Max Vge Ic
- 2.5V @ 15V, 10A
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Collectoremitter Breakdown Voltage
- 600V
- Power Max
- 30W
- Montaj Tipi
- Through Hole
- RoHS Durumu
- ROHS3 Compliant
- Pin Sayısı
- 3
