Specifications
- Collectoremitter Breakdown Voltage
- 600V
- Power Max
- 29.4W
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Pin Sayısı
- 3
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Surface Mount
- Igbt Type
- Trench
- Max Collector Current
- 10A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Element Configuration
- Single
- Ambalaj
- Tape & Reel (TR)
- Switching Energy
- 130μJ (on), 70μJ (off)
- Vceon Max Vge Ic
- 2.3V @ 15V, 5A
- Reverse Recovery Time
- 100 ns
- Test Conditions
- 300V, 5A, 5 Ω, 15V
- Giriş Tipi
- Standard
- Çalışma Sıcaklığı
- 150°C TJ
- Gate Charge
- 11nC
- Parça Durumu
- Last Time Buy
- Collector Emitter Voltage Vceo
- 2.3V

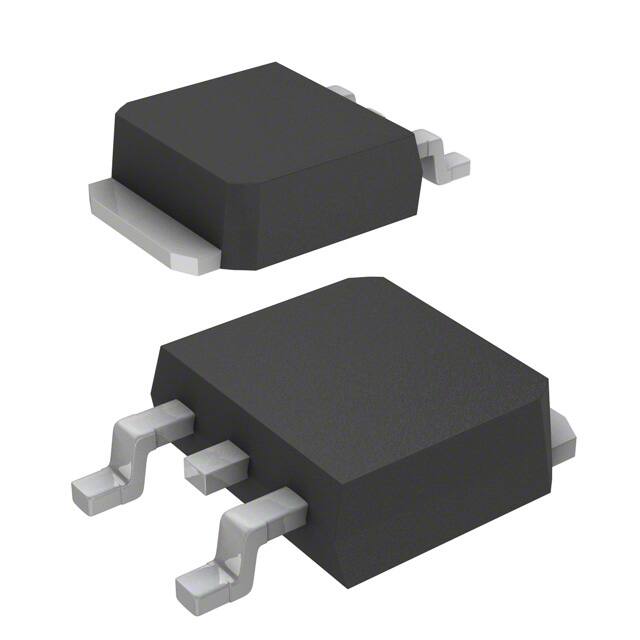

- Kılıf / Paket
- TO-252-3, DPak (2 Leads + Tab), SC-63
- Fabrika Tedarik Süresi
- 16 Weeks
- ECCN Kodu
- EAR99
- Max Power Dissipation
- 29.4W
- Td Onoff25c
- 30ns/40ns
- Montaj
- Surface Mount
- Polaritychannel Type
- N-CHANNEL
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Pin Sayısı
- 4
