Volume pricing
- 1+ pcs$4.60
- 10+ pcs$4.34
- 100+ pcs$4.10
- 500+ pcs$3.87
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- RoHS Durumu
- ROHS3 Compliant
- ECCN Kodu
- EAR99
- Montaj
- Surface Mount
- Ambalaj
- Cut Tape (CT)
- Genişlik
- 8mm
- Output Configuration
- Half Bridge
- Interface
- PWM
- Number Of Drivers
- 2
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Terminal Sayısı
- 56
- Fonksiyon Sayısı
- 1
- Load Type
- Inductive
- Max Power Dissipation
- 25W
- Uzunluk
- 8mm
- Özellikler
- Status Flag
- Radyasyon Dayanımı
- No
- Maks. Oturma Yüksekliği
- 0.95mm
- Pin Sayısı
- 56
- Terminal Adımı
- 0.5mm
- Besleme Gerilimi
- 5.2V
- Montaj Tipi
- Surface Mount

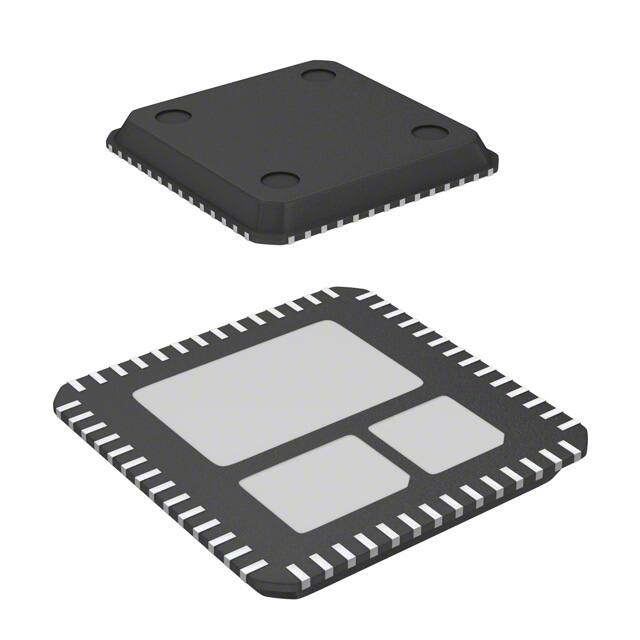

- Kılıf / Paket
- 56-VFQFN Exposed Pad
- Applications
- Buck Converters
- Output Peak Current Limitnom
- 40A
- Supply Voltage1nom
- 12V
- Parça Durumu
- Obsolete
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Voltage Load
- 7V~7.8V
- Terminal Pozisyonu
- QUAD
- Yayın Yılı
- 2010
- Pin Sayısı
- 56
- High Side Driver
- YES
- Besleme Gerilimi
- 7V~7.8V
- Fault Protection
- Current Limiting, Over Temperature, Short Circuit, UVLO
- Temel Parça No
- R2J20602NP
- Max Output Current
- 40A
