Specifications

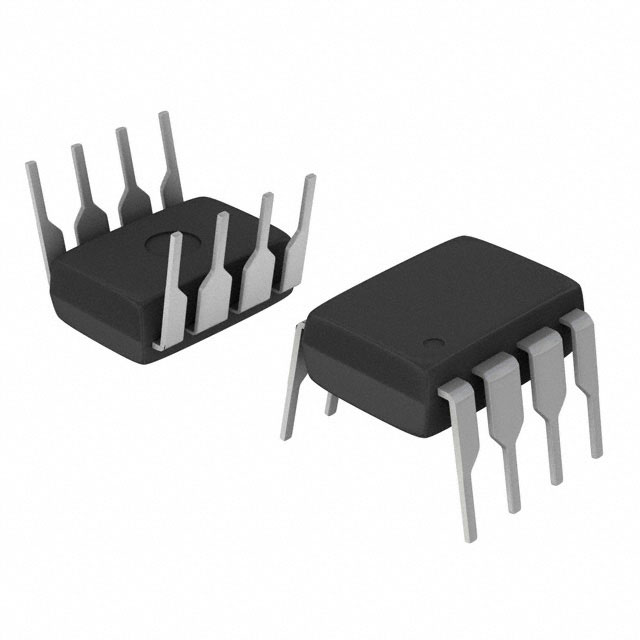

- Kılıf / Paket
- 8-DIP (0.300, 7.62mm)
- RoHS Durumu
- ROHS3 Compliant
- Terminal Kaplaması
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Tedarikçi Cihaz Paketi
- 8-DIP
- Radyasyon Dayanımı
- No
- Reverse Breakdown Voltage
- 5V
- Voltage Isolation
- 5000Vrms
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Turn On Delay Time
- 750 ns
- Propagation Delay Tplh Tphl Max
- 750ns, 500ns
- Current Transfer Ratio
- 110 %
- Montaj Tipi
- Through Hole
- Current Dc Forward If Max
- 25mA
- Common Mode Transient Immunity Min
- 15kV/μs
- JESD-609 Kodu
- e4
- Pin Sayısı
- 8
- Montaj
- Through Hole
- Configuration
- SINGLE
- Max Power Dissipation
- 100mW
- Power Dissipation
- 100mW
- Output Current Per Channel
- 15mA
- Max Output Current
- 15mA
- Çıkış Tipi
- Open Collector
- Output Current
- 15mA
- Additional Feature
- UL RECOGNIZED
- Giriş Tipi
- DC
- Propagation Delay
- 750 ns
- Kurşunsuz Kodu
- yes
- Voltage Forward Vf Typ
- 1.65V
- Direction
- Unidirectional
- Number Of Channels
- 1
- Number Of Elements
- 1
- Kurşunsuz
- Lead Free
- Forward Current
- 25mA
- Inputs Side1side2
- 1/0
- Forward Voltage
- 1.65V
- Maks. Çalışma Sıcaklığı
- 100°C
- Min. Çalışma Sıcaklığı
- -40°C
- Çalışma Sıcaklığı
- -40°C~100°C
- Fabrika Tedarik Süresi
- 16 Weeks
