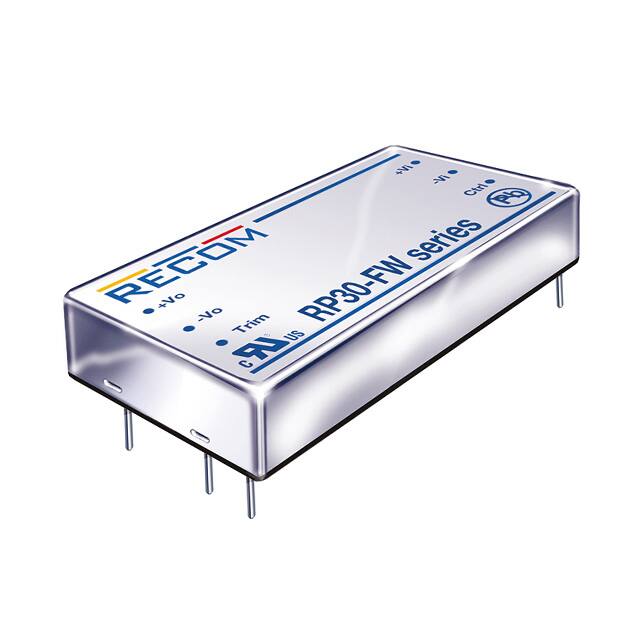

RP30-2405SFW

Specifications

Seri

POWERLINE RP30-FW (30W)

Montaj

PCB, Through Hole

Nominal Output Voltage

5V

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Min Input Voltage Dc

9V

Max Output Power

30W

Genişlik

25.4mm

Voltage Isolation

1.6kV

Max Output Voltage

5.5V

Applications

ITE (Commercial)

Terminal Sayısı

6

Control Features

Enable, Active High

Output Current

6A

Trimadjustable Output

YES

Efficiency

88%

Additional Feature

SEATED HGT-NOM

Isolation

Isolated

Qualification Status

Not Qualified

Output Power

30W

Yükseklik

10.2mm

Parça Durumu

Active

Max Power Dissipation

30W

Depth

50.8mm

Ambalaj

Tube

Pin Sayısı

6

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

6-DIP Module

Max Input Voltage Dc

36V

Fonksiyon Sayısı

1

Weight

30.5g

Nominal Input Voltage

24V

Tip

Isolated Module

Boyut / Ölçü

2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm

Number Of Outputs

1

Özellikler

Remote On/Off, OCP, OTP, OVP, SCP

Terminal Pozisyonu

DUAL

Output Voltage

4.5V

Input Voltagenom

24V
