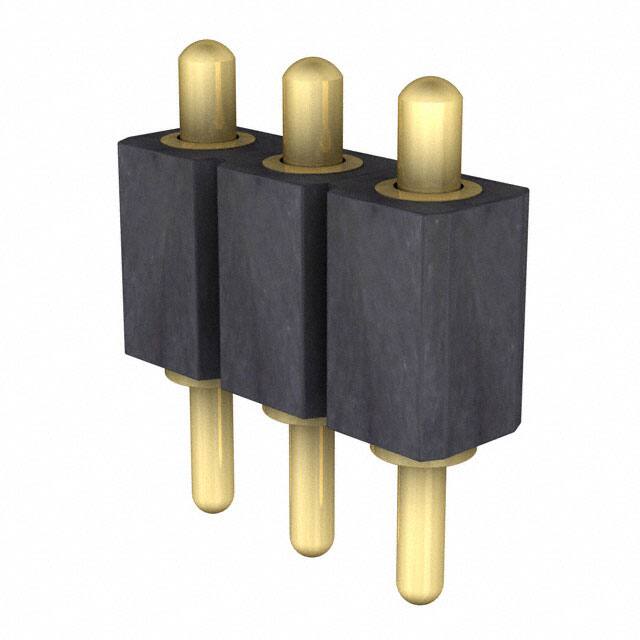

811-S1-003-10-014101

Specifications

Fabrika Tedarik Süresi

10 Weeks

Contact Resistance

10mOhm

Housing Color

Black

Terminal

Solder

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Iec Conformance

NO

Ambalaj

Bulk

Contact Finish

Gold

Connector Type

Piston

Uzunluk

7.62mm

Akım Değeri

3.5A

Yükseklik

4mm

Reliability

COMMERCIAL

Housing Material

Polychlorinated

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Max Current Rating

3.5A

Parça Durumu

Active

Durability

50000 Cycles

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Contact Materials

Brass, Copper

Depth

2.54mm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

150V

Seri

811

Montaj Tipi

Through Hole

Contact Finish Thickness

19.7μin 0.50μm

Montaj

Through Hole

Orientation

Straight

Number Of Contacts

3

Number Of Conductors

ONE

Material

Brass

Reference Standard

UL

Min. Çalışma Sıcaklığı

-55°C

Pitch

0.100 2.54mm

Additional Feature

LOW PROFILE
