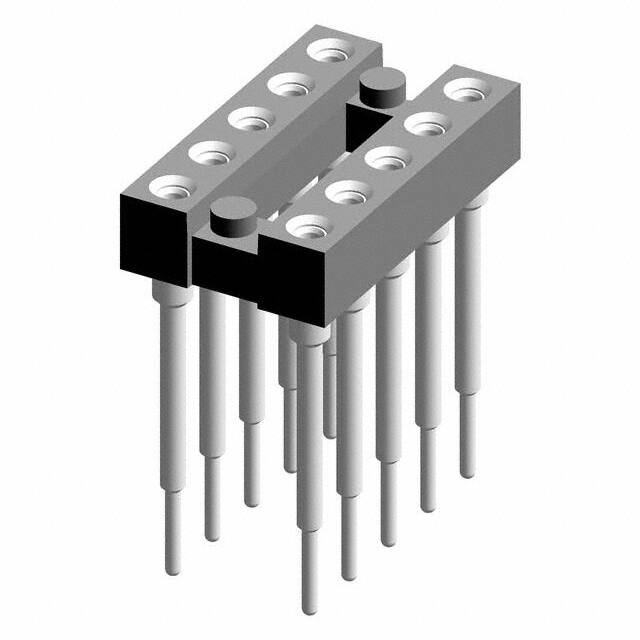

116-83-210-41-002101

Specifications

Contact Material Post

Brass

Contact Style

RND PIN-SKT

Contact Material Mating

Beryllium Copper

Flammability Rating

UL94 V-0

Tip

DIP, 0.2 (5.08mm) Row Spacing

Contact Resistance

10mOhm

Akım Değeri

1A

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lead Length

3.175mm

RoHS Durumu

ROHS3 Compliant

Termination Post Length

0.125 3.18mm

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1400VAC V

Number Of Contacts

10

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

HTS Kodu

8536.69.40.40

Number Of Positions Or Pins Grid

10 (2 x 5)

Pcb Contact Row Spacing

0.2 mm

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Terminal Adımı

2.54mm

Kurşunsuz Kodu

yes

Parça Durumu

Active

Özellikler

Elevated, Open Frame

Montaj Tipi

Through Hole

Pitch Post

0.100 2.54mm

Body Length Or Diameter

0.496 inch

Montaj

Through Hole

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Terminal

Solder

JESD-609 Kodu

e3

Contact Finish Post

Tin

Pin Sayısı

10

Yayın Yılı

2012

Seri

116

Pitch Mating

0.100 2.54mm
