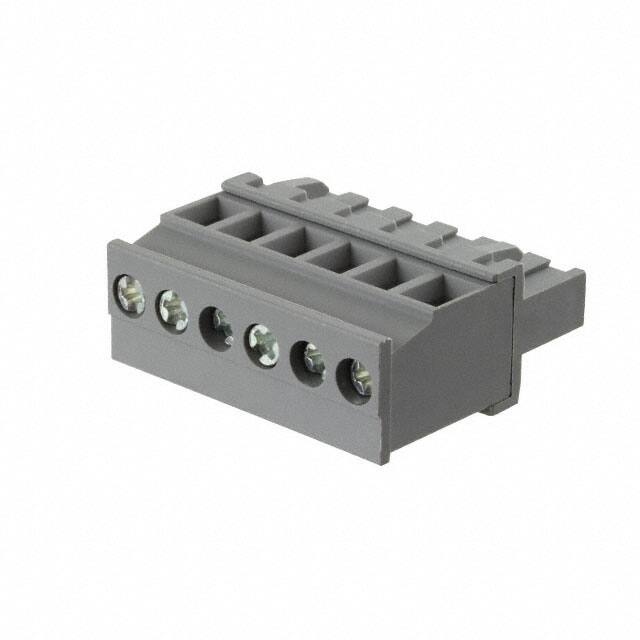

Specifications
- Wire Gauge Or Range Awg
- 12-30 AWG
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Obsolete
- Wire Strip Length
- 7mm
- Fabrika Tedarik Süresi
- 3 Weeks
- Yayın Yılı
- 2015
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Sıra Sayısı
- 1
- Renk
- Gray
- Voltageiec
- 630V
- Tip
- Plug, Female Sockets
- RoHS Durumu
- RoHS Compliant
- Number Of Ways
- 6
- Safety Approval
- CUL; UL
- Kurşunsuz Kodu
- yes
- Orientation
- Straight
- Contact Mating Finish
- Tin
- Montaj
- Cable, Free Hanging
- Material Flammability Rating
- UL94 V-0
- Max Current Rating
- 12A
- Number Of Positions Per Level
- 6
- Wire Gauge Max
- 30 AWG
- Montaj Tipi
- Free Hanging (In-Line)
- Wire Cross Section
- 2.5 mm2
- Ambalaj
- Bulk
- Wire Gauge Min
- 12 AWG
- Housing Material
- Polyamide (PA), Nylon
- Insulation Height
- 1.024 26.01mm
- Number Of Levels
- 1
- Gerilim
- 300V
- Seri
- BCVP
- Additional Feature
- PA, UL 94V-0
- Akım
- 12A
- Screw Size
- M3
- Plug Wire Entry
- 90°
- Özellikler
- Retention Latches (Wire Side)
- Pitch
- 0.200 5.08mm
- Number Of Decks
- 1
- ECCN Kodu
- EAR99
- Terminal Stili
- Screw
