Volume pricing
- 1+ pcs$13.90
- 10+ pcs$13.11
- 100+ pcs$12.37
- 500+ pcs$11.67
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

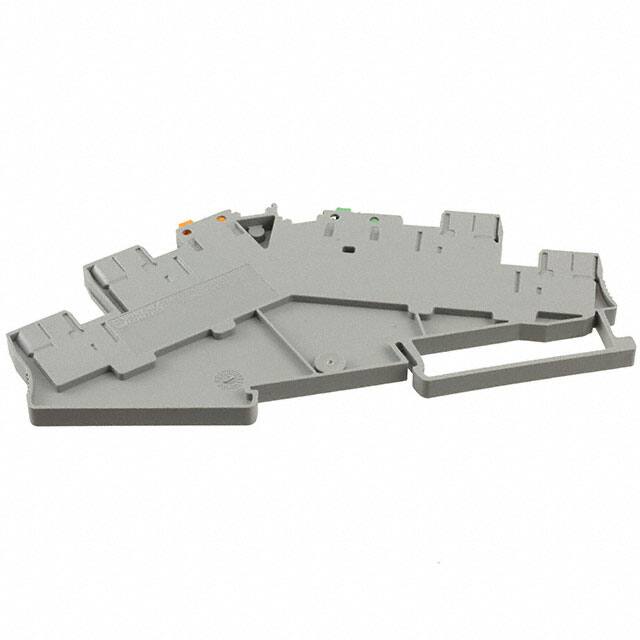

Specifications
- Disconnect Type
- Switch, Knife
- Pozisyon Sayısı
- 4
- Kurşunsuz Kodu
- yes
- Material Insulation
- Polyamide (PA), Nylon
- Wire Gauge Or Range Awg
- 12-26 AWG
- Parça Durumu
- Active
- Terminal Width
- 5.2mm
- Wire Gauge Max
- 26 AWG
- Wire Gauge Min
- 12 AWG
- Gerilim
- 300V
- Number Of Levels
- 2
- Terminal Stili
- Push In
- Wire Gauge Or Range Mm
- 0.14-4mm2
- RoHS Durumu
- RoHS Compliant
- Yayın Yılı
- 2015
- Akım
- 16A
- Seri
- CLIPLINE PTTBS
- Tip
- Disconnect
- Stripping Length
- 8mm
- Fabrika Tedarik Süresi
- 4 Weeks
- Renk
- Gray
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Flammability Rating
- UL94 V-0
- Voltageiec
- 400V
- Flammability Rating
- UL94 V-0
