Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

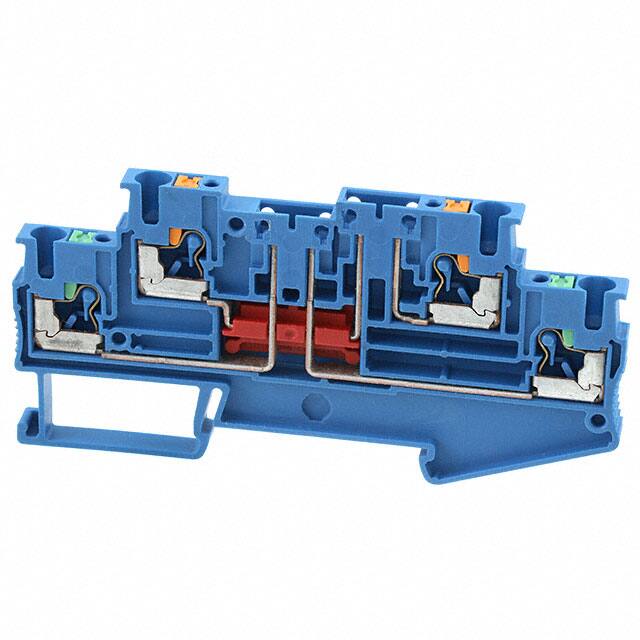

Specifications
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Or Range Awg
- 12-26 AWG
- Terminal Width
- 5.2mm
- Disconnect Type
- Switch, Knife
- Material Flammability Rating
- UL94 V-0
- Gerilim
- 300V
- Yayın Yılı
- 2015
- Voltageiec
- 400V
- Renk
- Blue
- Terminal Stili
- Push In
- Pozisyon Sayısı
- 4
- Kurşunsuz Kodu
- yes
- Wire Gauge Max
- 26 AWG
- Wire Gauge Min
- 12 AWG
- Parça Durumu
- Active
- Stripping Length
- 10mm
- Material Insulation
- Polyamide (PA), Nylon
- Akım
- 16A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Flammability Rating
- UL94 V-0
- Number Of Levels
- 2
- Wire Gauge Or Range Mm
- 0.14-4mm2
- Tip
- Disconnect
- Seri
- CLIPLINE PTT
- Fabrika Tedarik Süresi
- 6 Weeks
