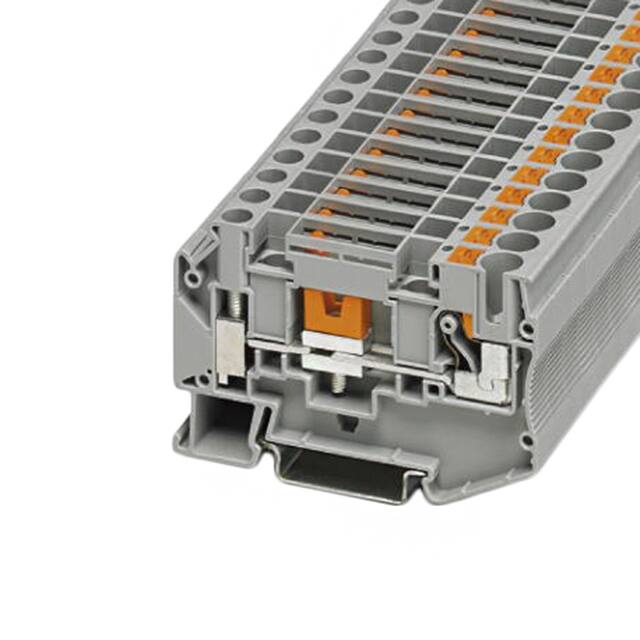

3209535

Specifications

Pozisyon Sayısı

2

Fabrika Tedarik Süresi

4 Weeks

Wire Gauge Or Range Mm

0.5-10mm2

Wire Gauge Or Range Awg

8-20 AWG

Currentiec

41A

Disconnect Type

Switch, Slide

Voltageiec

500V

ECCN Kodu

EAR99

Renk

Gray

Material Flammability Rating

UL94 V-0

Material Insulation

Polyamide (PA), Nylon

Terminal Width

8.2mm

Terminal Stili

Push In; Screw

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Stripping Length

10mm 12mm

HTS Kodu

8536.69.40.40

Number Of Levels

1

Seri

CLIPLINE PT

REACH Uyumluluk Kodu

not_compliant

Tip

Disconnect
