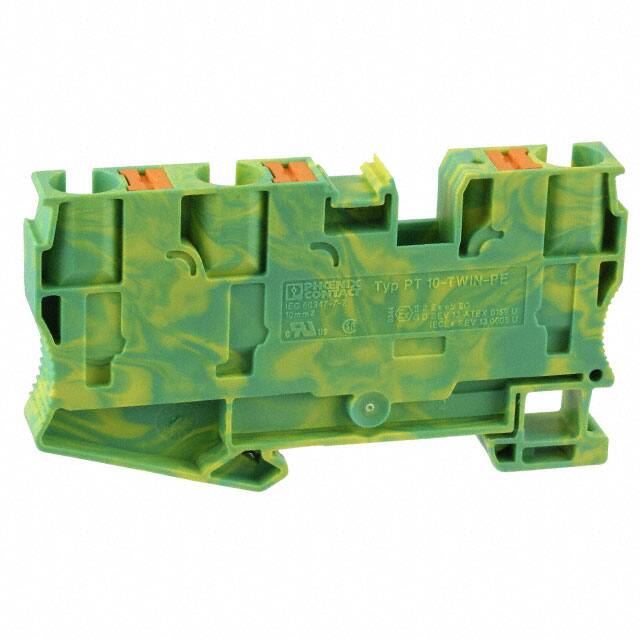

3208745

Specifications

Yükseklik

49.5mm

Number Of Levels

1

Number Of Ways

3

Yayın Yılı

2015

Stripping Length

18mm

Weight

44.18001g

Akım Değeri

57A

Tip

Ground, Earth

Additional Feature

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: EAC; DNVGL; IEC; LR; NK; PRS; UL; VDE

Max Current Rating

57A

Wire Gauge Or Range Awg

6-20 AWG

Wire Gauge Or Range Mm

0.5-16mm2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Decks

1

Parça Durumu

Active

Genişlik

10.2mm

Wire Gauge Min

20 AWG

Terminal Stili

Push In, Spring

Flammability Rating

UL94 V-0

Material Insulation

Polyamide (PA), Nylon

Renk

Green, Yellow

ECCN Kodu

EAR99

Sıra Sayısı

1

Seri

CLIPLINE PT

Wirecable Gauge

16 AWG

Housing Material

Nylon

Safety Approval

ABS; ATEX; BV; CB; CSA; CUL

Fabrika Tedarik Süresi

11 Weeks

Connector Type

Push-In

Uzunluk

88.9mm

Wire Gauge Max

20 AWG

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0
