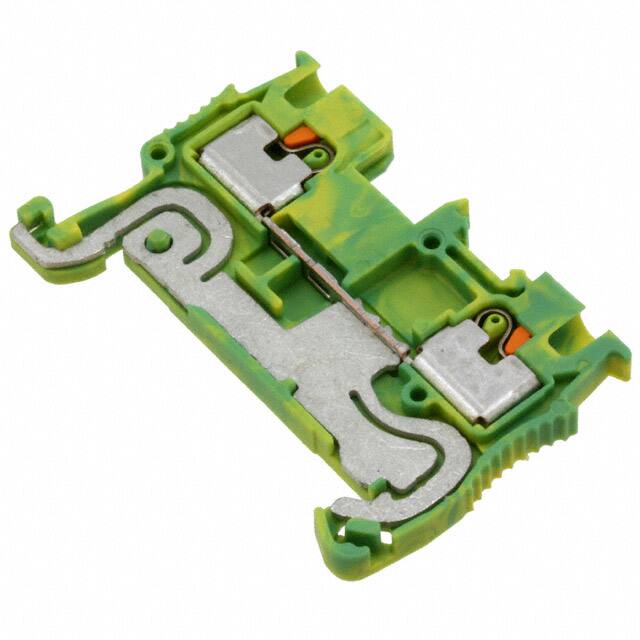

3208139

Specifications

Wirecable Gauge

14 AWG

Safety Approval

ATEX; CB; CSA; CUL; GL; IEC

Fabrika Tedarik Süresi

4 Weeks

Connector Type

Push-In

Uzunluk

45mm

Terminal

Plug

Wire Gauge Max

26 AWG

Pozisyon Sayısı

2

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Sıra Sayısı

1

Seri

CLIPLINE PT

Wire Gauge Or Range Awg

14-26 AWG

Wire Gauge Or Range Mm

0.14-1.5mm2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Number Of Decks

1

Parça Durumu

Active

Genişlik

3.5mm

Terminal Stili

Push In, Spring

Wire Gauge Min

14 AWG

Flammability Rating

UL94 V-0

Material Insulation

Polyamide (PA), Nylon

Renk

Green, Yellow

ECCN Kodu

EAR99

Yükseklik

39.5mm

Number Of Levels

1

Number Of Ways

2

Yayın Yılı

2012

Stripping Length

8mm

Tip

Ground, Earth

Additional Feature

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: LR; NK; UL; VDE
