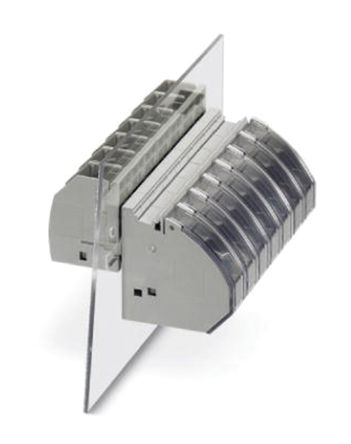

3075113

Specifications

Akım

65A

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Genişlik

0.642 16.30mm

Sıra Sayısı

1

Panel Mount Type

2 Piece, Snap Lock

Material

Polyamide

Seri

CLIPLINE RW

Yayın Yılı

2015

Fabrika Tedarik Süresi

7 Weeks

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

RoHS Durumu

RoHS Compliant

Number Of Contacts

2

Renk

Gray

Flammability Rating

UL94 V-0

Parça Durumu

Obsolete

Nominal Gerilim

1kV

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Gender

Female

Akım Değeri

76A

Gerilim

600V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm
