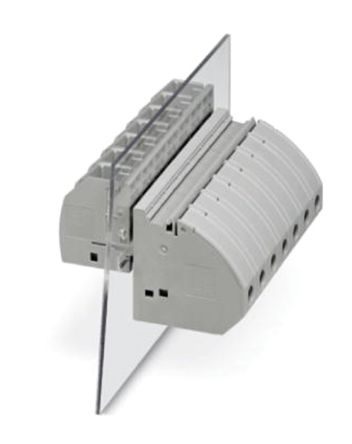

3073788

Specifications

Nem Hassasiyeti (MSL)

Not Applicable

Wire Gauge Min

6 AWG

Housing Material

Polyamide

Depth

77.7mm

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Renk

Gray

Number Of Contacts

2

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Fabrika Tedarik Süresi

7 Weeks

Parça Durumu

Obsolete

Yayın Yılı

2013

Max Supply Voltage

1kV

Gerilim

600V

Akım Değeri

76A

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Gender

Female

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Positions Per Level

1

Genişlik

0.642 16.30mm

Panel Mount Type

2 Piece, Snap Lock

Nominal Gerilim

1kV

Flammability Rating

UL94 V-0

Akım

65A

Seri

CLIPLINE RW

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Kurşunsuz Kodu

yes

Max Current Rating

76A

Wire Gauge Max

26 AWG

Uzunluk

16.3mm
