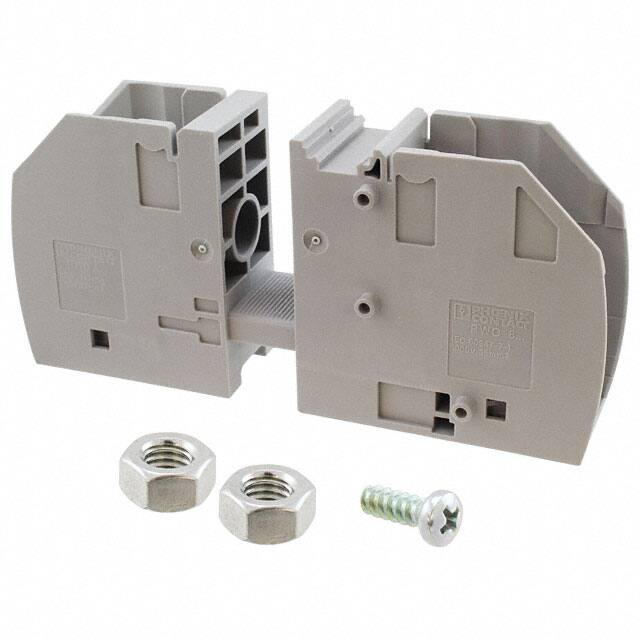

3056145

Specifications

Kurşunsuz Kodu

yes

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

RoHS Durumu

RoHS Compliant

Gender

Female

Gerilim

600V

Seri

CLIPLINE RW

Yayın Yılı

2011

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

7 Weeks

Number Of Levels

1

Genişlik

0.799 20.30mm

Terminal

PCB

Number Of Positions Per Level

2

Montaj

Wall

Wire Gauge

2-14 AWG

Nominal Gerilim

1kV

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Akım Değeri

125A

Panel Mount Type

2 Piece

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Material

Polyamide

Wire Gauge Max

14 AWG

Renk

Gray

Parça Durumu

Obsolete

Wire Gauge Min

2 AWG

REACH Uyumluluk Kodu

unknown

Akım

115A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

125A
