Volume pricing
- 1+ pcs$0.78
- 10+ pcs$0.73
- 100+ pcs$0.69
- 500+ pcs$0.65
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

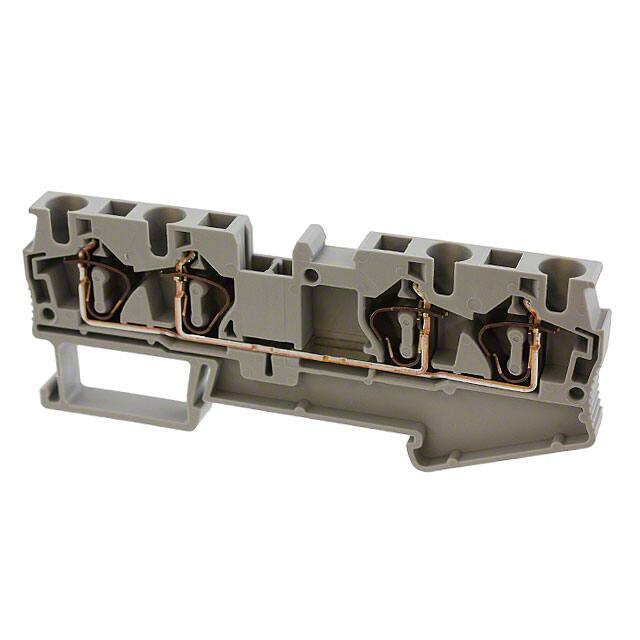

Specifications
- Material Flammability Rating
- UL94 V-0
- Genişlik
- 6.2mm
- Akım
- 30A
- Terminal Stili
- Push In, Spring
- Uzunluk
- 87mm
- Fastening Method
- SPRING LOADED
- Wirecable Gauge
- 10 AWG
- Number Of Levels
- 1
- Wire Gauge Min
- 10 AWG
- Renk
- Gray
- Currentiec
- 32A
- Kurşunsuz
- Lead Free
- Wire Gauge Or Range Mm
- 0.08-6mm2
- Seri
- CLIPLINE ST
- Flammability Rating
- UL94 V-0
- Akım Değeri
- 32A
- Onay Kuruluşu
- CB, CSA, UL, VDE, cULus
- Fabrika Tedarik Süresi
- 7 Weeks
- Max Current Rating
- 40A
- Stripping Length
- 10mm
- ECCN Kodu
- EAR99
- Wire Gauge Or Range Awg
- 10-28 AWG
- Max Supply Voltage
- 800V
- Material Insulation
- Polyamide (PA), Nylon
- Number Of Poles
- 4
- Housing Material
- Polyamide
- RoHS Durumu
- RoHS Compliant
- Gerilim
- 600V
- Yükseklik
- 44mm
- Wire Cross Section
- 6 mm2
- Nem Hassasiyeti (MSL)
- Not Applicable
- Wire Gauge Max
- 28 AWG
- Depth
- 6.2mm
- Pozisyon Sayısı
- 4
- Weight
- 13.600003g
- Nominal Gerilim
- 800V
- Yayın Yılı
- 2008
- Montaj
- Through Hole
- Tip
- Feed Through
- Parça Durumu
- Active
