Volume pricing
- 1+ pcs$22.24
- 10+ pcs$20.98
- 100+ pcs$19.79
- 500+ pcs$18.67
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

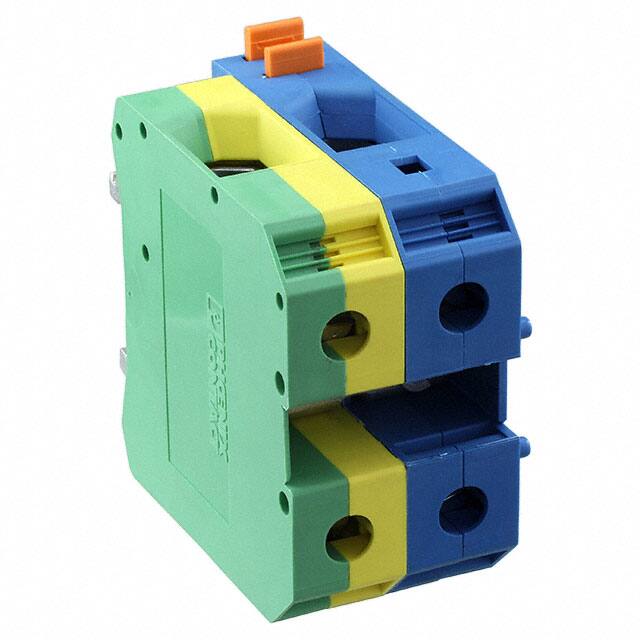

Specifications
- Terminal Stili
- Screw
- Terminal Width
- 40.0mm
- Pozisyon Sayısı
- 2
- HTS Kodu
- 8536.69.40.40
- Renk
- Blue, Green-Yellow
- Tip
- Feed Through
- Material Flammability Rating
- UL94 V-2
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Max
- 6 AWG
- Yayın Yılı
- 2015
- Uzunluk
- 70.5mm
- Wire Gauge Or Range Mm
- 16-50mm2
- Wire Gauge Min
- 0 AWG
- Number Of Levels
- 1
- ECCN Kodu
- EAR99
- Nominal Gerilim
- 1kV
- Genişlik
- 40mm
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Flammability Rating
- UL94 V-2
- Stripping Length
- 24mm
- Wire Gauge Or Range Awg
- 1/0-6 AWG
- Seri
- CLIPLINE UKH
- Voltageiec
- 1000V
- Akım Değeri
- 150A
- Fabrika Tedarik Süresi
- 4 Weeks
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Insulation
- Polyamide (PA), Nylon
