Volume pricing
- 1+ pcs$1.91
- 10+ pcs$1.80
- 100+ pcs$1.70
- 500+ pcs$1.60
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Number Of Ways
- 2
- Kurşunsuz
- Lead Free
- Voltage Rated Ac
- 400V
- Currentiec
- 57A
- Radyasyon Dayanımı
- No
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Kurşunsuz Kodu
- yes
- Depth
- 10.2mm
- Fabrika Tedarik Süresi
- 7 Weeks
- Contact Materials
- Copper
- Wirecable Gauge
- 6 AWG
- Terminal Stili
- Screw
- Safety Approval
- ATEX; BV; CB; CSA; CUL; DNVGL
- Sıra Sayısı
- 2
- Tip
- Ground, Earth
- Yükseklik
- 47mm
- Akım Değeri
- 76A
- Number Of Decks
- 1
- Uzunluk
- 42.5mm
- Material Insulation
- Polyamide (PA), Nylon
- Wire Gauge Max
- 20 AWG
- Reach Svhc
- No SVHC
- Number Of Contacts
- 1
- Nem Hassasiyeti (MSL)
- Not Applicable
- Housing Material
- Polyamide
- Orientation
- Straight
- Lead Pitch
- 10.2mm
- Pozisyon Sayısı
- 2
- Additional Feature
- STANDARD: UL 94V-0, PA; SAFETY APPROVAL: EAC; EACEX; IECEX; KEMA; KR; PRS; UL
- Renk
- Green, Yellow
- Seri

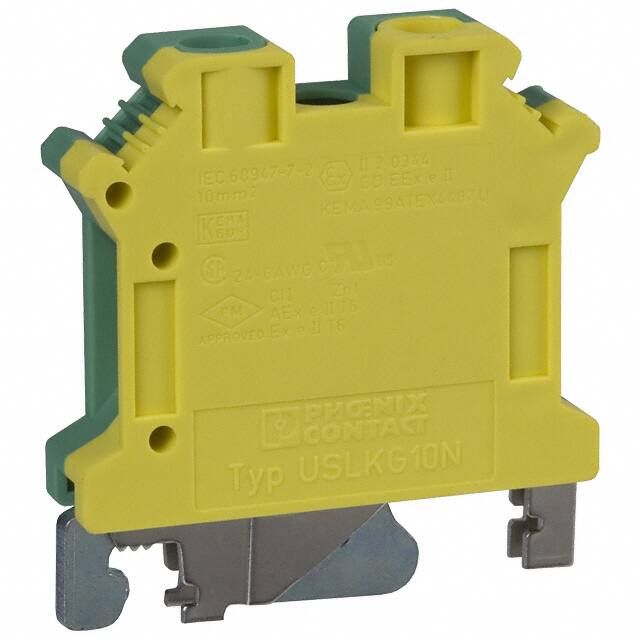

- CLIPLINE USLKG
- Genişlik
- 10.2mm
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Awg
- 6-24 AWG
- Yayın Yılı
- 2001
- Max Current Rating
- 76A
- HTS Kodu
- 8536.90.40.00
- Parça Durumu
- Active
- Wire Gauge Min
- 20 AWG
