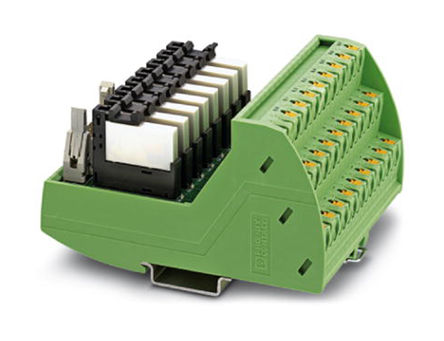

2903600

Specifications

Turn On Delay Time

5 ms

Özellikler

Diode, LED

Genişlik

4.323 109.80mm

Process Side Connection

Terminal Blocks - Spring Connection

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2015

Uzunluk

3.650 92.71mm

Positions Poles

14

Control Side Connection

Rectangular, Male

Wire Gauge Max

26 AWG

Fabrika Tedarik Süresi

8 Weeks

Çalışma Sıcaklığı

-20°C~60°C

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Terminal

IDC

Contact Materials

Gold, Silver, Tin

Wire Gauge Min

14 AWG

Control Side Cable Retainer

Latches

Input Current

9mA

Depth

63mm

Max Input Voltage

26.4V

Min Input Voltage

21.6V

Yükseklik

109.8mm

Wire Gauge

14-26 AWG

Seri

VARIOFACE, VIP
