Volume pricing
- 1+ pcs$4.12
- 10+ pcs$3.89
- 100+ pcs$3.67
- 500+ pcs$3.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications

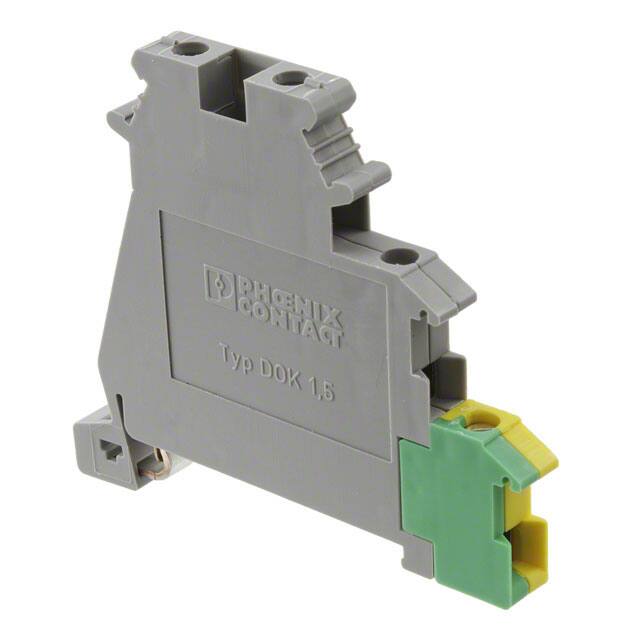

- Seri
- CLIPLINE DOK
- Number Of Poles
- 4
- Number Of Circuits
- 1
- Parça Durumu
- Active
- Terminal Stili
- Screw
- Housing Color
- Grey
- Onay Kuruluşu
- CSA, UL, cULus
- Max Current Rating
- 24A
- Renk
- Gray
- Uzunluk
- 61.5mm
- Material Flammability Rating
- UL94 V-2
- Contact Materials
- Copper
- Wirecable Gauge
- 12 AWG
- Tip
- Feed Through, Isolated (2)
- Fabrika Tedarik Süresi
- 7 Weeks
- RoHS Durumu
- RoHS Compliant
- Number Of Levels
- 3; 1 Grounded
- Stripping Length
- 8mm
- Nominal Gerilim
- 250V
- Number Of Decks
- 3
- Genişlik
- 6.2mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gerilim
- 300V
- Voltageiec
- 250V
- Housing Material
- Nylon
- Number Of Ways
- 4
- REACH Uyumluluk Kodu
- not_compliant
- Wire Gauge Or Range Mm
- 0.2-4mm2
- Sıra Sayısı
- 3
- Safety Approval
- UL
- Wire Gauge Min
- 14 AWG
- Flammability Rating
- UL94 V-2
- Wire Gauge Or Range Awg
- 14-30 AWG
- Wire Gauge Max
- 30 AWG
- Akım
- 15A
- Weight
- 1.000171kg
- Kurşunsuz Kodu
- yes
- Kurşunsuz
- Lead Free
- Material Insulation
- Polyamide (PA), Nylon
- Akım Değeri
- 26A
