Volume pricing
- 1+ pcs$2.39
- 10+ pcs$2.26
- 100+ pcs$2.13
- 500+ pcs$2.01
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Fastening Method
- SPRING LOADED
- Fabrika Tedarik Süresi
- 7 Weeks
- Number Of Levels
- 1
- Depth
- 13.1mm
- Renk
- Green
- Yayın Yılı
- 2005
- Number Of Ways
- 17
- Wire Gauge Max
- 26 AWG
- Akım Değeri
- 2A
- Kurşunsuz Kodu
- yes
- Nominal Gerilim
- 160V
- Wire Termination
- Screwless - Spring Cage, Tension Clamp
- Yükseklik
- 11.5mm
- Kurşunsuz
- Lead Free
- Additional Feature
- PA, UL 94V-0
- Number Of Decks
- 1
- Flammability Rating
- UL94 V-0
- Weight
- 6.03g
- Pitch
- 0.098 2.50mm
- Safety Approval
- UL
- HTS Kodu
- 8536.69.40.40
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)

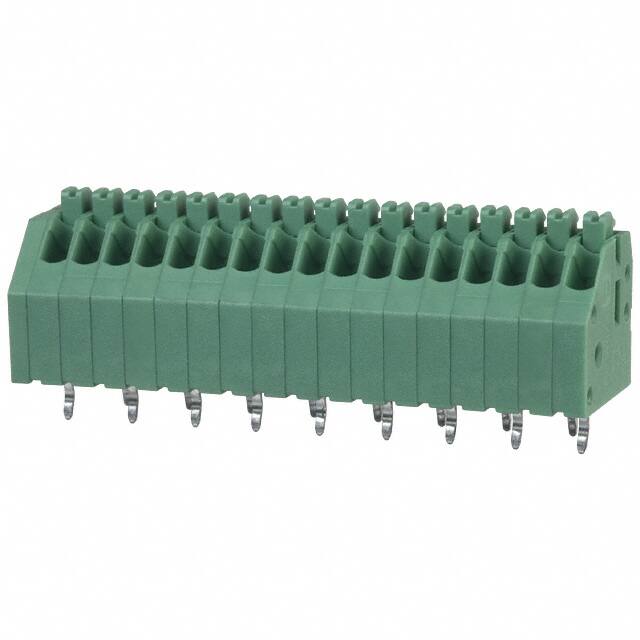

- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Gerilim
- 300V
- Housing Material
- Polyamide (PA), Nylon
- Wire Gauge Min
- 20 AWG
- Terminal
- Screwless
- Mating Orientation
- 45° (135°) Angle with Board
- Wire Gauge
- 20-26 AWG
- Material
- Polyamide
- Wire Cross Section
- 0.5 mm2
- Montaj Tipi
- Through Hole
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 12mm
- Montaj
- Through Hole
- Pozisyon Sayısı
- 17
- Gender
- Female
- Sıra Sayısı
- 1
