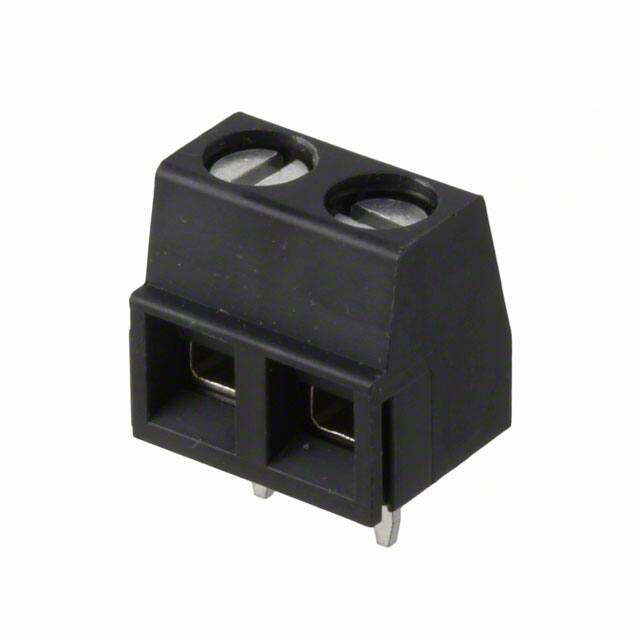

1985865

Specifications

RoHS Durumu

RoHS Compliant

Yayın Yılı

2003

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Max Current Rating

13.5A

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Akım

10A

Ambalaj

Bulk

Contact Materials

Tin

Wire Termination

Screw - Rising Cage Clamp

Safety Approval

UL

Number Of Positions Per Level

2

Parça Durumu

Active

Depth

8.1mm

Housing Material

Polyamide (PA), Nylon

Pitch

0.200 5.08mm

Additional Feature

PA, 94V-0

Orientation

Straight

Weight

2.620006g

Max Supply Voltage

200V

Wire Gauge Max

30 AWG

Connector Type

Screw

Number Of Ways

2

Nominal Gerilim

320V

Gerilim

300V

Özellikler

Interlocking (Side)

Sıra Sayısı

1

Seri

COMBICON MKDSN

Mating Orientation

Horizontal with Board

Number Of Levels

1

Renk

Black

Yükseklik

10mm

Uzunluk

8.1mm

Nem Hassasiyeti (MSL)

3 (168 Hours)

HTS Kodu

8536.69.40.40

Number Of Decks

1

Wire Gauge

14-30 AWG

Wire Gauge Min

14 AWG

Kurşunsuz Kodu

yes

Screw Thread

M3
