Volume pricing
- 1+ pcs$1.06
- 10+ pcs$1.00
- 100+ pcs$0.94
- 500+ pcs$0.89
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

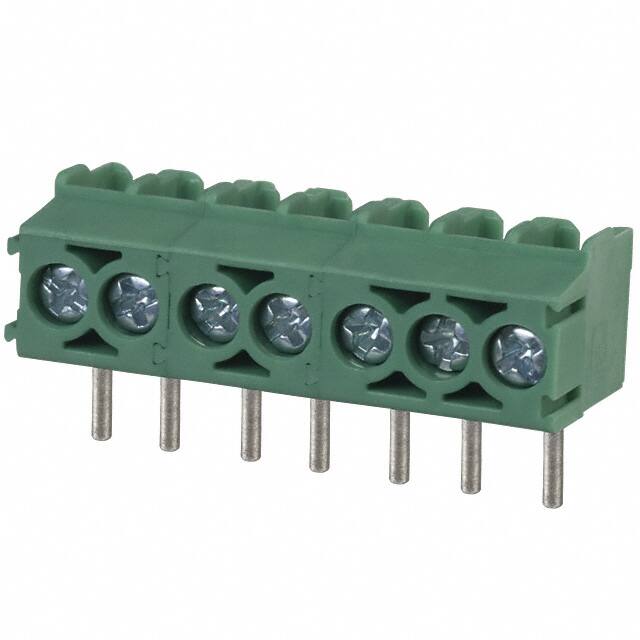

Specifications
- Fabrika Tedarik Süresi
- 10 Weeks
- RoHS Durumu
- RoHS Compliant
- Kurşunsuz Kodu
- yes
- Özellikler
- Interlocking (Side)
- Flammability Rating
- UL94 V-0
- Ambalaj
- Bulk
- Uzunluk
- 9mm
- HTS Kodu
- 8536.69.40.40
- Wire Gauge
- 16-26 AWG
- Kurşunsuz
- Lead Free
- Genişlik
- 9.2mm
- Gender
- Male
- Yükseklik
- 7.6mm
- ECCN Kodu
- EAR99
- Safety Approval
- UL
- Gerilim
- 300V
- Screw Thread
- M2
- Wire Gauge Max
- 26 AWG
- Mating Orientation
- Vertical with Board
- Insulation Materials
- Nylon
- Onay Kuruluşu
- UL
- Wire Termination
- Screw
- Orientation
- Right Angle
- Additional Feature
- PA, 94V-0
- Number Of Decks
- 1
- Montaj
- Through Hole
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Parça Durumu
- Active
- Depth
- 7.6mm
- Yayın Yılı
- 2005
- Nominal Gerilim
- 160V
- Number Of Ways
- 7
- Weight
- 3.420001g
- Housing Material
- Polyamide (PA), Nylon
- Number Of Contacts
- 7
- Pitch
- 0.138 3.50mm
- Max Current Rating
- 17.5A
- Stripping Length
- 5mm
- Number Of Levels
- 1
- Seri
- COMBICON PT
