Volume pricing
- 1+ pcs$32.70
- 10+ pcs$30.85
- 100+ pcs$29.10
- 500+ pcs$27.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

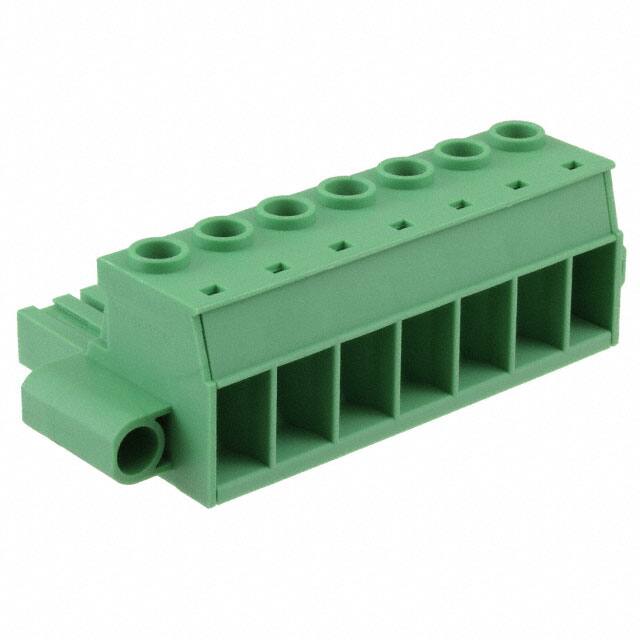

Specifications
- Tip
- Plug, Female Sockets
- Montaj
- Free Hanging
- Terminal Stili
- Screw - Rising Cage Clamp
- Safety Approval
- UL
- Sıra Sayısı
- 1
- Wire Strip Length
- 12mm
- Plug Wire Entry
- 180°
- Wire Gauge Max
- 6 AWG
- Gerilim
- 600V
- Number Of Decks
- 1
- Akım Değeri
- 76A
- Flammability Rating
- UL94 V-0
- Screw Size
- M4
- RoHS Durumu
- RoHS Compliant
- Ambalaj
- Bulk
- Number Of Ways
- 7
- Currentiec
- 76A
- Kurşunsuz Kodu
- yes
- Voltageiec
- 1kV
- Fabrika Tedarik Süresi
- 4 Weeks
- Number Of Levels
- 1
- Material Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2004
- HTS Kodu
- 8536.69.40.40
- Wire Gauge Or Range Awg
- 6-20 AWG
- Weight
- 68.30999g
- Wire Gauge Min
- 18 AWG
- Parça Durumu
- Active
- Pitch
- 0.400 10.16mm
- Akım
- 55A
- Insulation Height
- 1.094 27.80mm
- ECCN Kodu
- EAR99
- Wire Gauge Or Range Mm
- 0.75-16mm2
- Nominal Gerilim
- 1kV
- Montaj Tipi
- Free Hanging (In-Line)
- Contact Mating Finish
- Silver
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Material
- Polyamide (PA), Nylon
- Additional Feature
- PA, UL 94V-0
- Renk
- Green
