Volume pricing
- 1+ pcs$29.93
- 10+ pcs$28.23
- 100+ pcs$26.64
- 500+ pcs$25.13
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

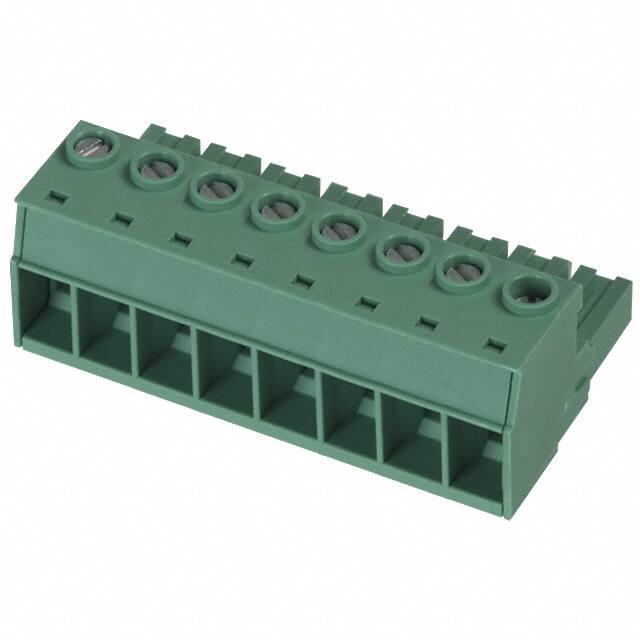

Specifications
- Wire Gauge Or Range Awg
- 6-20 AWG
- Yayın Yılı
- 2004
- Material Flammability Rating
- UL94 V-0
- Montaj Tipi
- Free Hanging (In-Line)
- Nominal Gerilim
- 1kV
- Wire Gauge Or Range Mm
- 0.75-16mm2
- ECCN Kodu
- EAR99
- Insulation Height
- 1.094 27.80mm
- Akım
- 55A
- Pitch
- 0.400 10.16mm
- Parça Durumu
- Active
- Wire Gauge Min
- 6 AWG
- Gender
- Female
- Weight
- 72.01g
- Housing Material
- Polyamide (PA), Nylon
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Mating Finish
- Silver
- Connector Type
- Screw
- Seri
- COMBICON PC
- Renk
- Green
- Additional Feature
- PA, UL 94V-0
- Number Of Positions Per Level
- 8
- Wire Strip Length
- 12mm
- Sıra Sayısı
- 1
- Safety Approval
- UL
- Terminal Stili
- Screw - Rising Cage Clamp
- Tip
- Plug, Female Sockets
- Montaj
- Free Hanging
- Akım Değeri
- 76A
- Number Of Decks
- 1
- Wire Gauge Max
- 20 AWG
- Gerilim
- 600V
- Plug Wire Entry
- 180°
- Kurşunsuz Kodu
- yes
- Currentiec
- 76A
- Kurşunsuz
- Lead Free
- Number Of Ways
- 8
- Ambalaj
- Bulk
- RoHS Durumu
- RoHS Compliant
- Screw Size
- M4
