Volume pricing
- 1+ pcs$9.49
- 10+ pcs$8.95
- 100+ pcs$8.45
- 500+ pcs$7.97
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

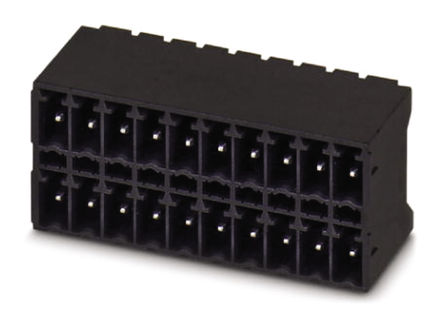

Specifications
- Flammability Rating
- UL94 V-0
- Nominal Gerilim
- 160V
- Ambalaj
- Bulk
- HTS Kodu
- 8536.69.40.40
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 6 Weeks
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Housing Material
- Liquid Crystal Polymer (LCP)
- Montaj
- Through Hole
- Number Of Positions Per Level
- 10
- Yayın Yılı
- 2002
- Voltageiec
- 250V
- Safety Approval
- UL
- Renk
- Black
- Sıra Sayısı
- 1
- Orientation
- Right Angle
- Pozisyon Sayısı
- 20
- Montaj Tipi
- Through Hole
- RoHS Durumu
- RoHS Compliant
- Number Of Decks
- 1
- Max Current Rating
- 8A
- Akım Değeri
- 8A
- Number Of Ways
- 10
- Currentiec
- 8A per Position
- Seri
- COMBICON MCDN
- Uzunluk
- 36.5mm
- Akım
- 8A
- Fastening Method
- CONNECTOR
- Additional Feature
- LCP, UL 94V-0
- Number Of Levels
- 2
- Material Flammability Rating
- UL94 V-0
- Insulation Height
- 0.598 15.19mm
- Gerilim
- 150V
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Contact Tail Length
- 0.055 1.40mm
- Depth
- 13.3mm
- Terminal Stili
- Solder
- Pitch
- 0.138 3.50mm
- Contact Mating Finish
- Tin
