Volume pricing
- 1+ pcs$6.23
- 10+ pcs$5.88
- 100+ pcs$5.54
- 500+ pcs$5.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

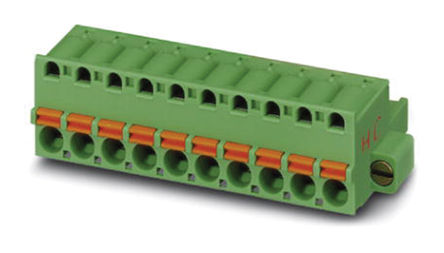

Specifications
- Number Of Decks
- 1
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Min
- 24 AWG
- Voltageiec
- 630V
- Terminal
- Screwless
- Kurşunsuz Kodu
- yes
- Akım Değeri
- 16A
- Wire Strip Length
- 10mm
- ECCN Kodu
- EAR99
- Montaj Tipi
- Free Hanging (In-Line)
- Fabrika Tedarik Süresi
- 4 Weeks
- Montaj
- Free Hanging
- Gerilim
- 300V
- Özellikler
- Mating Flange, Retention Latches (Non-Wire Side)
- Contact Mating Finish
- Tin
- Number Of Levels
- 1
- Sıra Sayısı
- 1
- Seri
- COMBICON FKC
- Gender
- Female
- Insulation Height
- 0.591 15.00mm
- Renk
- Green
- Plug Wire Entry
- 180°
- Wire Gauge Or Range Awg
- 12-26 AWG
- Fastening Method
- SPRING LOADED
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- HTS Kodu
- 8536.69.40.40
- Number Of Positions Per Level
- 12
- Safety Approval
- UL
- Parça Durumu
- Active
- Housing Material
- Polyamide (PA), Nylon
- Tip
- Plug, Female Sockets
- Additional Feature
- PA, UL 94V-0
- Pitch
- 0.200 5.08mm
- Wire Cross Section
- 2.5 mm2
- Terminal Stili
- Screwless - Push-In Spring
- Material
- Polyamide, Tin
- Wire Gauge Max
- 12 AWG
- Nominal Gerilim
- 250V
- Number Of Ways
- 12
- RoHS Durumu
- RoHS Compliant
