Volume pricing
- 1+ pcs$3.34
- 10+ pcs$3.15
- 100+ pcs$2.97
- 500+ pcs$2.80
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

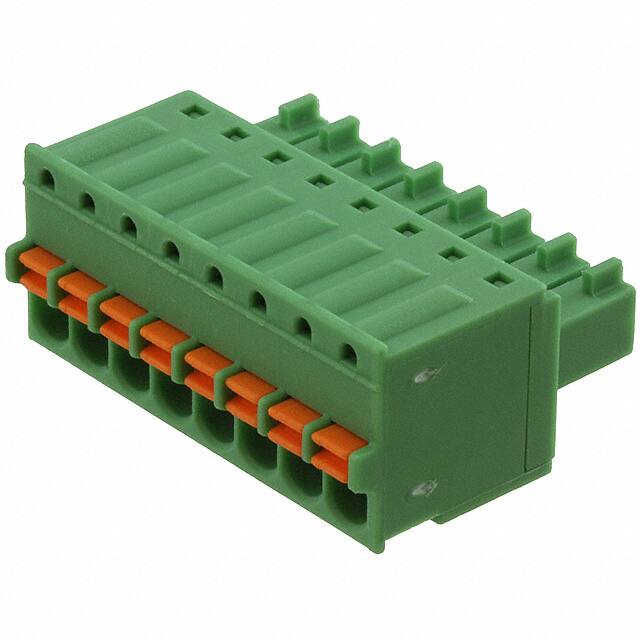

Specifications
- Contact Materials
- Copper
- Akım
- 8A
- Number Of Ways
- 8
- Pitch
- 0.138 3.50mm
- Terminal Stili
- Screwless - Push-In Spring
- Max Current Rating
- 8A
- Flammability Rating
- UL94 V-0
- Terminal
- Screwless
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Additional Feature
- PA, UL 94V-0
- Material Flammability Rating
- UL94 V-0
- Number Of Contacts
- 8
- Parça Durumu
- Active
- Wire Gauge Or Range Awg
- 16-28 AWG
- Housing Material
- Polyamide (PA), Nylon
- Number Of Levels
- 1
- Safety Approval
- UL
- Wire Gauge Max
- 28 AWG
- Montaj Tipi
- Free Hanging (In-Line)
- Uzunluk
- 12.4mm
- Connector Type
- Socket
- ECCN Kodu
- EAR99
- Wire Gauge Min
- 16 AWG
- Gerilim
- 300V
- Plug Wire Entry
- 180°
- Yayın Yılı
- 2002
- Depth
- 20.8mm
- Seri
- COMBICON FK-MCP
- Contact Mating Finish
- Tin
- Tip
- Plug, Female Sockets
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- RoHS Durumu
- RoHS Compliant
- Montaj
- Cable, Free Hanging
- Material
- Polyamide
- Orientation
- Straight
- Voltageiec
- 320V
- Ambalaj
- Bulk
- Fabrika Tedarik Süresi
- 7 Weeks
- Renk
- Green
- Kurşunsuz Kodu
- yes
