Volume pricing
- 1+ pcs$0.54
- 10+ pcs$0.51
- 100+ pcs$0.48
- 500+ pcs$0.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

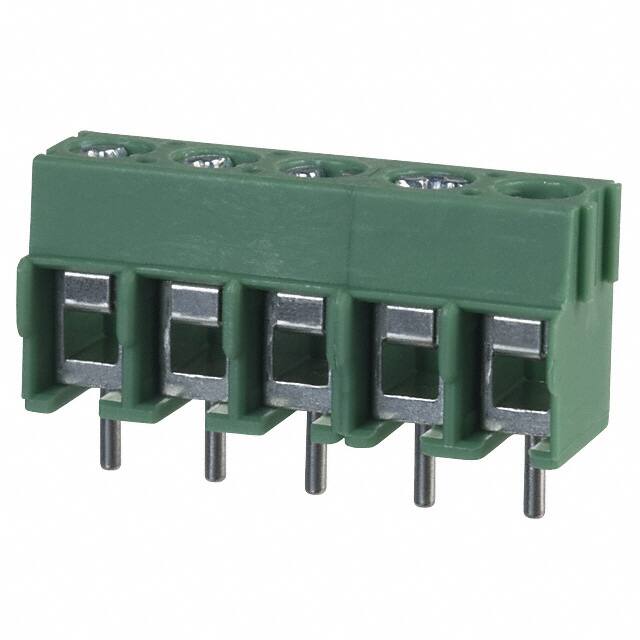

Specifications
- Flammability Rating
- UL94 V-0
- Renk
- Green
- Wire Gauge
- 12-26 AWG
- Fabrika Tedarik Süresi
- 4 Weeks
- Number Of Ways
- 5
- Nominal Gerilim
- 250V
- Safety Approval
- UL
- Montaj Tipi
- Through Hole
- Sıra Sayısı
- 1
- Yükseklik
- 11.3mm
- Pitch
- 0.197 5.00mm
- Radyasyon Dayanımı
- No
- Contact Materials
- Copper
- Number Of Levels
- 1
- Contact Plating
- Tin
- Weight
- 5.080008g
- Gerilim
- 300V
- Yayın Yılı
- 2008
- Wire Termination
- Screw
- Depth
- 9mm
- Akım Değeri
- 17.5A
- Seri
- COMBICON PT
- Montaj
- Through Hole
- Additional Feature
- PA, 94V-0
- Screw Thread
- M2.6
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Max
- 26 AWG
- Voltage Rated Dc
- 320V
- Orientation
- Straight
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Kurşunsuz
- Lead Free
- Özellikler
- Interlocking (Side)
- Housing Material
- Polyamide (PA), Nylon
- Max Supply Voltage
- 250V
- Wire Gauge Min
- 12 AWG
- Uzunluk
- 9mm
- Number Of Decks
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Kurşunsuz Kodu
- yes
- Max Current Rating
- 16A
