Volume pricing
- 1+ pcs$0.16
- 10+ pcs$0.15
- 100+ pcs$0.14
- 500+ pcs$0.13
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Contact Mating Finish
- Tin
- Genişlik
- 10mm
- Insulation Materials
- Nylon
- ECCN Kodu
- EAR99
- Number Of Ways
- 3
- Montaj Tipi
- Through Hole
- Terminal Stili
- Solder
- Additional Feature
- PA, UL 94V0
- Orientation
- Straight
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Min
- 26 AWG
- Voltage Rated Dc
- 400V
- Depth
- 2.8mm
- Number Of Levels
- 1
- Yayın Yılı
- 2010
- Gerilim
- 300V
- Wire Gauge Max
- 12 AWG
- Nominal Gerilim
- 250V
- Safety Approval
- UL
- Seri
- COMBICON PST
- Pitch
- 0.197 5.00mm
- Contact Tail Length
- 0.138 3.50mm
- Sıra Sayısı
- 1
- Kurşunsuz Kodu
- yes
- Montaj
- Through Hole
- Kurşunsuz
- Lead Free
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 15mm
- Pozisyon Sayısı
- 3
- Header Orientation
- Vertical
- Akım
- 16A
- Number Of Decks
- 1
- Fabrika Tedarik Süresi
- 7 Weeks
- Flammability Rating
- UL94 V-0
- Max Current Rating
- 12A
- Weight
- 540.001716mg
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Materials
- Copper
- Parça Durumu
- Active
- Tip

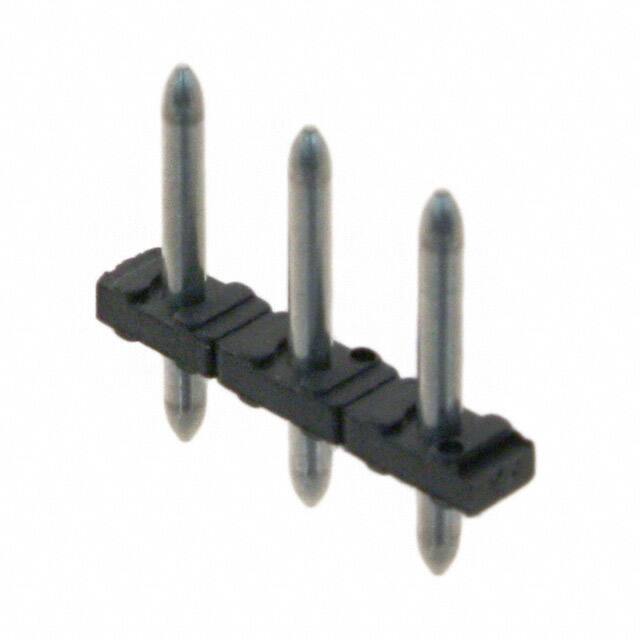

- Header, Male Pins, Unshrouded
