Volume pricing
- 1+ pcs$13.57
- 10+ pcs$12.80
- 100+ pcs$12.08
- 500+ pcs$11.39
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

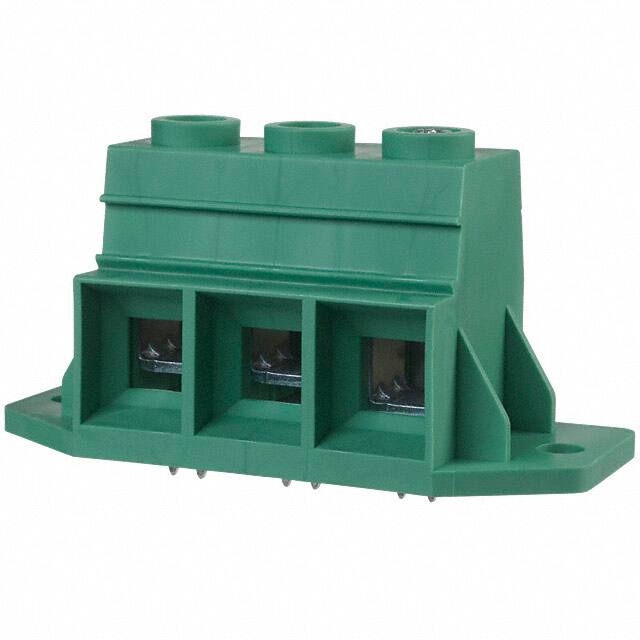

Specifications
- Yayın Yılı
- 2005
- Gerilim
- 600V
- Number Of Levels
- 1
- Terminal
- Screw
- Seri
- COMBICON MKDSP
- Safety Approval
- UL
- Özellikler
- Flange (Mounting)
- Nominal Gerilim
- 1kV
- Wire Gauge Max
- 20 AWG
- Yükseklik
- 43.5mm
- Wire Termination
- Screw - Rising Cage Clamp
- Genişlik
- 75mm
- ECCN Kodu
- EAR99
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Additional Feature
- PA, UL 94V0
- Wire Gauge Min
- 2 AWG
- Montaj Tipi
- Through Hole
- Number Of Ways
- 3
- Contact Materials
- Copper, Tin
- Renk
- Green
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 9 Weeks
- Flammability Rating
- UL94 V-0
- Weight
- 67.07999g
- Number Of Decks
- 1
- Wire Gauge
- 2-20 AWG
- Mating Orientation
- Horizontal with Board
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Akım Değeri
- 125A
- Ambalaj
- Bulk
- Housing Material
- Polyamide (PA), Nylon
- Sıra Sayısı
- 1
- Kurşunsuz Kodu
- yes
- Montaj
- Through Hole
- Pitch
- 0.591 15.00mm
- REACH Uyumluluk Kodu
- unknown
- Number Of Positions Per Level
- 3
- Akım
- 115A
- Kurşunsuz
- Lead Free
- Screw Thread
- M5
