Volume pricing
- 1+ pcs$2.02
- 10+ pcs$1.91
- 100+ pcs$1.80
- 500+ pcs$1.70
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications

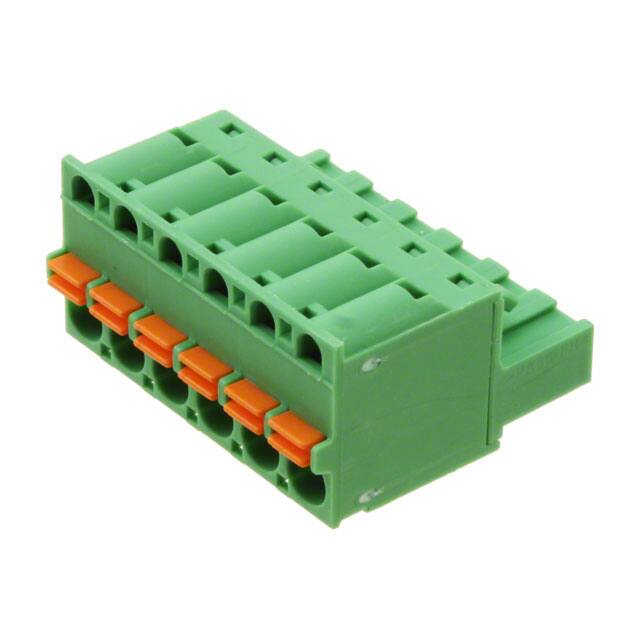

- Terminal Stili
- Screwless - Leg Spring, Push-In Spring
- Wire Gauge Min
- 12 AWG
- Safety Approval
- UL
- Housing Material
- Polyamide (PA), Nylon
- Material Flammability Rating
- UL94 V-0
- Kurşunsuz Kodu
- yes
- Plug Wire Entry
- 180°
- Gerilim
- 300V
- Özellikler
- Retention Latches (Non-Wire Side)
- Genişlik
- 30.1mm
- Fastening Method
- SPRING LOADED
- Weight
- 9.840006g
- Additional Feature
- PA, 94V-0
- RoHS Durumu
- RoHS Compliant
- Akım Değeri
- 12A
- Fabrika Tedarik Süresi
- 7 Weeks
- Wire Strip Length
- 10mm
- Onay Kuruluşu
- CB, CSA, VDE, cULus
- Ambalaj
- Bulk
- REACH Uyumluluk Kodu
- unknown
- Wire Cross Section
- 2.5 mm2
- ECCN Kodu
- EAR99
- Insulation Height
- 0.591 15.00mm
- Renk
- Green
- Contact Plating
- Tin
- Number Of Levels
- 1
- Terminal
- Screwless
- Pitch
- 0.197 5.00mm
- Voltageiec
- 630V
- Parça Durumu
- Active
- Wire Gauge Max
- 24 AWG
- Number Of Decks
- 1
- Number Of Contacts
- 6
- Tip
- Plug, Female Sockets
- Nominal Gerilim
- 250V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Seri
- COMBICON FKC
- Montaj Tipi
- Free Hanging (In-Line)
- Orientation
- Straight
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
