Volume pricing
- 1+ pcs$2.01
- 10+ pcs$1.89
- 100+ pcs$1.79
- 500+ pcs$1.68
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

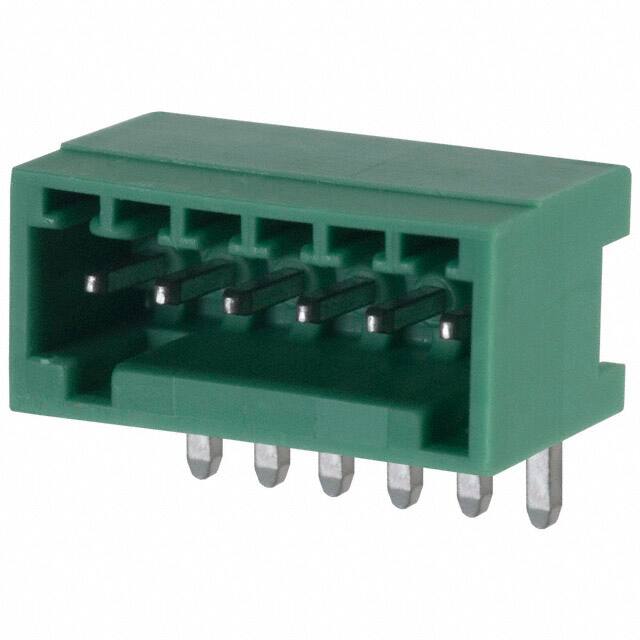

Specifications
- Housing Material
- Polyamide (PA), Nylon
- Number Of Ways
- 6
- Renk
- Green
- Insulation Height
- 0.319 8.10mm
- Yükseklik
- 8.1mm
- Genişlik
- 16.9mm
- Akım Değeri
- 4A
- Number Of Decks
- 1
- Wire Gauge Min
- 26 AWG
- Nominal Gerilim
- 32V
- Additional Feature
- PA, 94V-0
- Number Of Poles
- 6
- Max Current Rating
- 4A
- Kurşunsuz
- Lead Free
- Depth
- 10.1mm
- ECCN Kodu
- EAR99
- Voltageiec
- 320V
- Uzunluk
- 10.1mm
- Sıra Sayısı
- 1
- Terminal Stili
- Solder
- Contact Tail Length
- 0.150 3.81mm
- Ambalaj
- Bulk
- Weight
- 1.249987g
- Flammability Rating
- UL94 V-0
- Safety Approval
- UL
- Material Flammability Rating
- UL94 V-0
- Connector Type
- Plug
- Contact Plating
- Tin
- Wire Gauge Max
- 20 AWG
- Orientation
- Right Angle
- Reach Svhc
- No SVHC
- Fabrika Tedarik Süresi
- 7 Weeks
- Kurşunsuz Kodu
- yes
- Akım
- 4A
- Yayın Yılı
- 2003
- Parça Durumu
- Active
- Insulation Materials
- Nylon
- Onay Kuruluşu
- EN, UL, VDE
- Gerilim
- 125V
- Number Of Levels
- 1
