Volume pricing
- 1+ pcs$2.02
- 10+ pcs$1.91
- 100+ pcs$1.80
- 500+ pcs$1.70
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

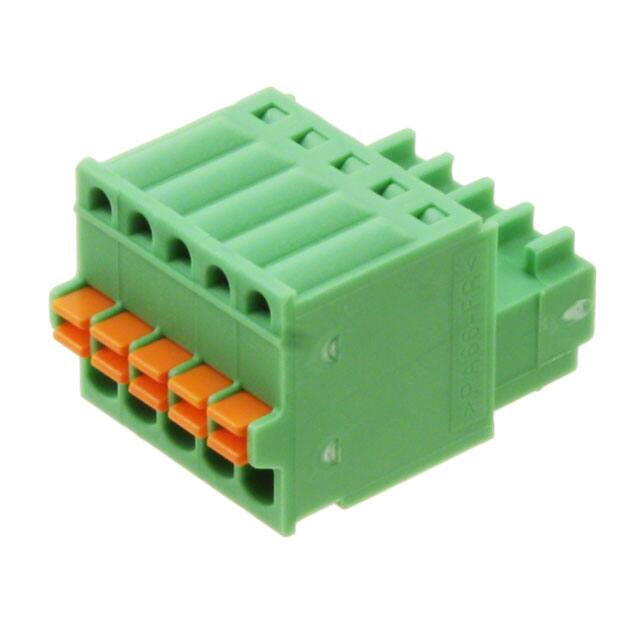

Specifications
- Housing Material
- Polyamide (PA), Nylon
- Number Of Ways
- 5
- Renk
- Green
- Akım Değeri
- 4A
- Genişlik
- 19.05mm
- Insulation Height
- 0.463 11.76mm
- Wire Gauge Or Range Awg
- 20-28 AWG
- Yükseklik
- 13.1mm
- Nominal Gerilim
- 100V
- Wire Gauge Min
- 20 AWG
- Number Of Decks
- 1
- Contact Mating Finish
- Tin
- Wire Gauge Or Range Mm
- 0.14-0.5mm2
- Plug Wire Entry
- 180°
- Stripping Length
- 8mm
- Additional Feature
- 94V-0
- ECCN Kodu
- EAR99
- Contact Materials
- Copper
- Kurşunsuz
- Lead Free
- Terminal
- Screwless
- Max Current Rating
- 4A
- Sıra Sayısı
- 1
- Uzunluk
- 11.75mm
- Voltageiec
- 320V
- Weight
- 2.88g
- Number Of Contacts
- 5
- Ambalaj
- Bulk
- Terminal Stili
- Screwless - Leg Spring, Push-In Spring
- Wire Gauge Max
- 28 AWG
- Connector Type
- Socket
- Voltage Rated Dc
- 160V
- Material Flammability Rating
- UL94 V-0
- Flammability Rating
- UL94 V-0
- Safety Approval
- UL; VDE
- Yayın Yılı
- 2003
- Kurşunsuz Kodu
- yes
- Akım
- 4A
- Orientation
- Straight
- Fabrika Tedarik Süresi
- 7 Weeks
- Fastening Method
- SPRING LOADED
