Volume pricing
- 1+ pcs$1.47
- 10+ pcs$1.39
- 100+ pcs$1.31
- 500+ pcs$1.24
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

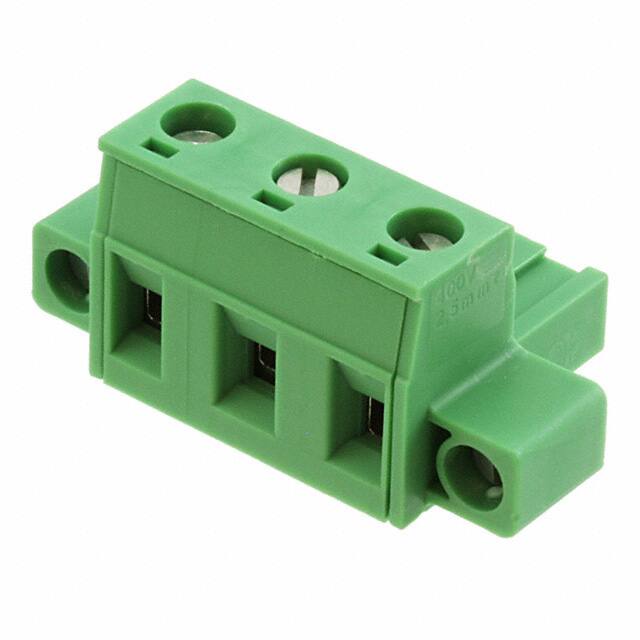

Specifications
- Kurşunsuz Kodu
- yes
- Number Of Levels
- 1
- Safety Approval
- UL
- Gerilim
- 300V
- Weight
- 167.00001g
- Renk
- Green
- Sıra Sayısı
- 1
- Terminal Stili
- Screw - Rising Cage Clamp
- Number Of Decks
- 1
- Voltageiec
- 1kV
- Flammability Rating
- UL94 V-0
- RoHS Durumu
- RoHS Compliant
- Contact Plating
- Tin
- Wire Cross Section
- 2.5 mm2
- Pozisyon Sayısı
- 3
- Wire Strip Length
- 7mm
- Plug Wire Entry
- 180°
- ECCN Kodu
- EAR99
- Material Flammability Rating
- UL94 V-0
- Montaj
- Free Hanging
- Montaj Tipi
- Free Hanging (In-Line)
- Wire Gauge Or Range Awg
- 12-30 AWG
- Seri
- COMBICON GMSTB
- Nominal Gerilim
- 400V
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Akım
- 10A
- Genişlik
- 33.25mm
- Yayın Yılı
- 2011
- Additional Feature
- PA, 94V-0
- Pitch
- 0.300 7.62mm
- Özellikler
- Mating Flange
- Tip
- Plug, Female Sockets
- Number Of Ways
- 3
- Housing Material
- Polyamide (PA), Nylon
- Kurşunsuz
- Lead Free
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- REACH Uyumluluk Kodu
- unknown
- Insulation Height
- 0.591 15.00mm
- Wire Gauge Max
- 12 AWG
