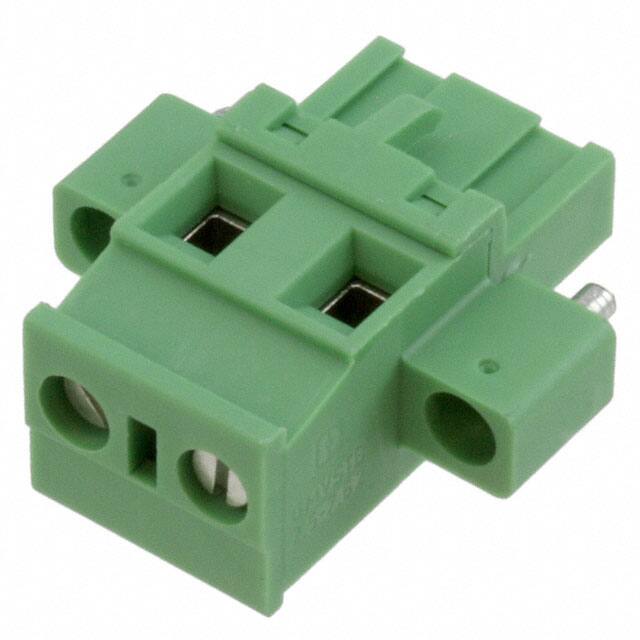

Specifications
- Wire Strip Length
- 7mm
- Housing Material
- Polyamide (PA), Nylon
- Akım Değeri
- 12A
- Number Of Levels
- 1
- Number Of Decks
- 1
- Akım
- 15A
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Wire Gauge Min
- 24 AWG
- Tip
- Plug, Female Sockets
- Sıra Sayısı
- 1
- Plug Wire Entry
- 90°
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Wire Gauge Or Range Awg
- 12-30 AWG
- Gerilim
- 300V
- Screw Size
- M3
- Yayın Yılı
- 2011
- Contact Mating Finish
- Tin
- Wire Gauge Max
- 12 AWG
- Weight
- 5.43999g
- Pozisyon Sayısı
- 2
- Voltageiec
- 1kV
- Terminal Stili
- Screw - Rising Cage Clamp
- Safety Approval
- UL; CSA
- Connector Type
- Screw
- Özellikler
- Mating Flange, Retention Latches (Wire Side)
- Montaj Tipi
- Free Hanging (In-Line)
- HTS Kodu
- 8536.69.40.40
- Seri
- COMBICON GMVSTBR
- Nominal Gerilim
- 500V
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 4 Weeks
- Currentiec
- 12A
- Ambalaj
- Bulk
- Pitch
- 0.300 7.62mm
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Montaj
- Free Hanging
- Kurşunsuz Kodu
- yes
