Volume pricing
- 1+ pcs$1.70
- 10+ pcs$1.60
- 100+ pcs$1.51
- 500+ pcs$1.42
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

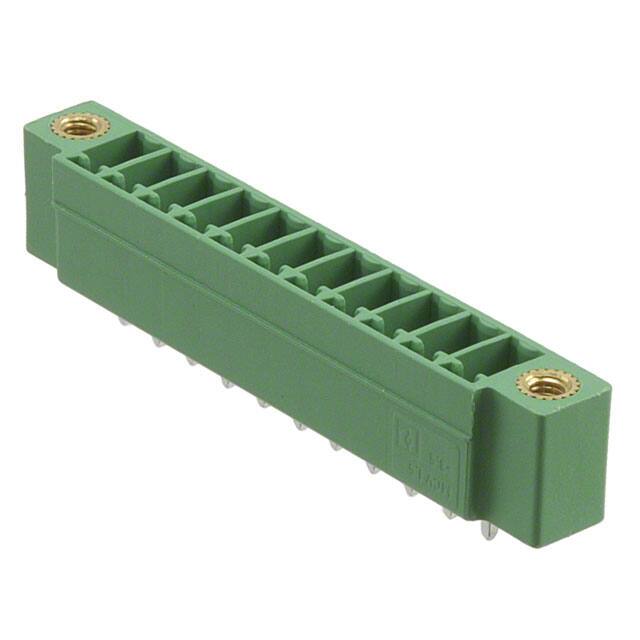

Specifications
- Akım
- 8A
- Uzunluk
- 7.25mm
- Seri
- COMBICON MCV
- Number Of Ways
- 11
- ECCN Kodu
- EAR99
- Contact Tail Length
- 0.138 3.50mm
- Gerilim
- 300V
- Kurşunsuz Kodu
- yes
- Insulation Height
- 0.362 9.20mm
- Contact Plating
- Tin
- Number Of Levels
- 1
- Material Flammability Rating
- UL94 V-0
- Additional Feature
- PBT, 94V-0
- Pitch
- 0.138 3.50mm
- Kurşunsuz
- Lead Free
- Terminal Stili
- Solder
- Header Orientation
- Vertical
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 3.51999g
- Fabrika Tedarik Süresi
- 4 Weeks
- Parça Durumu
- Active
- HTS Kodu
- 8536.69.40.40
- Ambalaj
- Bulk
- Nominal Gerilim
- 160V
- Flammability Rating
- UL94 V-0
- Renk
- Green
- Yükseklik
- 12.7mm
- Voltageiec
- 250V
- Safety Approval
- UL
- Connector Type
- Plug
- Yayın Yılı
- 2011
- Genişlik
- 48.8mm
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Housing Material
- Polybutylene Terephthalate (PBT)
- Montaj
- Through Hole
- Pozisyon Sayısı
- 11
- Sıra Sayısı
- 1
- Akım Değeri
- 8A
- Özellikler
- Mating and Mounting Flange
- Number Of Decks
- 1
