Volume pricing
- 1+ pcs$5.00
- 10+ pcs$4.72
- 100+ pcs$4.45
- 500+ pcs$4.20
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

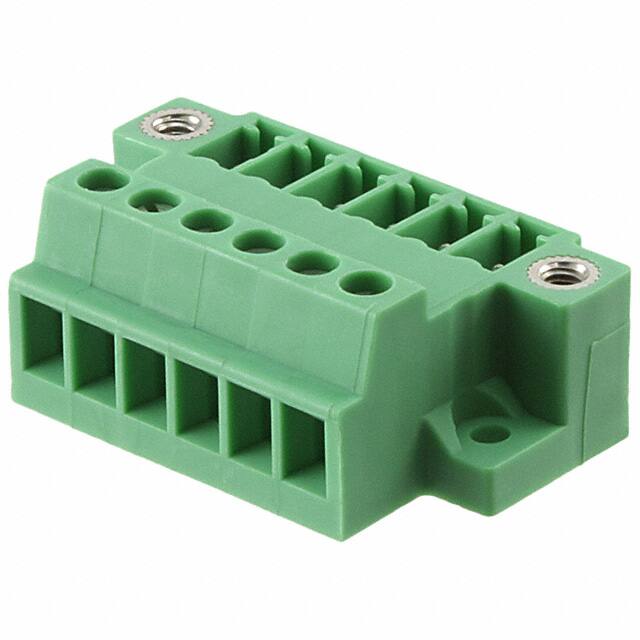

Specifications
- Akım
- 8A
- Material Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2011
- Fabrika Tedarik Süresi
- 4 Weeks
- Akım Değeri
- 8A
- Weight
- 203.999993g
- Safety Approval
- UL
- Parça Durumu
- Active
- Tip
- Receptacle, Male Pins
- Uzunluk
- 19.4mm
- Wire Gauge Min
- 14 AWG
- Genişlik
- 33.25mm
- Number Of Levels
- 1
- RoHS Durumu
- RoHS Compliant
- Nominal Gerilim
- 160V
- Sıra Sayısı
- 1
- Kurşunsuz
- Lead Free
- Wire Gauge Or Range Awg
- 14-30 AWG
- Additional Feature
- PA, 94V-0
- Insulation Height
- 0.492 12.50mm
- Wire Gauge Max
- 30 AWG
- ECCN Kodu
- EAR99
- Yükseklik
- 20.3mm
- Terminal Stili
- Screw - Rising Cage Clamp
- Max Current Rating
- 8A
- Voltageiec
- 320V
- Contact Plating
- Tin
- Number Of Ways
- 6
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- Screw Size
- M2
- Pitch
- 0.150 3.81mm
- Housing Material
- Polyamide (PA), Nylon
- Number Of Decks
- 1
- Renk
- Green
- Wire Strip Length
- 7mm
- Kurşunsuz Kodu
- yes
- Ambalaj
- Bulk
- Gerilim
- 300V
- Özellikler
- Mating and Mounting Flange
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
