Specifications
- Ambalaj
- Bulk
- Gerilim
- 300V
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Flammability Rating
- UL94 V-0
- Depth
- 22.7mm
- Number Of Ways
- 7
- Contact Plating
- Tin
- Positions Per Level
- 7
- Housing Material
- Polyamide (PA), Nylon
- Pitch
- 0.150 3.81mm
- Renk
- Green
- Number Of Decks
- 1
- Header Orientation
- Vertical
- Pozisyon Sayısı
- 14
- Montaj
- Through Hole
- Seri
- COMBICON MCDV
- Connector Type
- Plug
- Montaj Tipi
- Through Hole
- REACH Uyumluluk Kodu
- unknown
- Contact Tail Length
- 0.134 3.40mm
- Tip

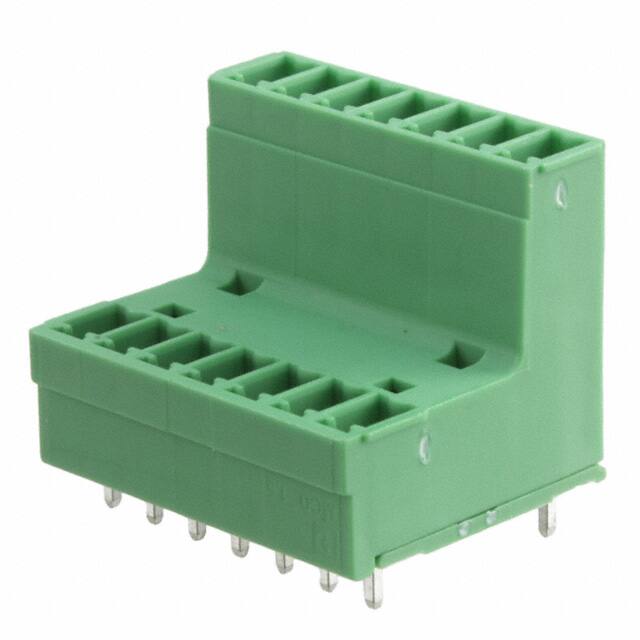

- Header, Male Pins, Shrouded (4 Side)
- Parça Durumu
- Active
- Safety Approval
- UL
- Uzunluk
- 28.06mm
- Akım
- 8A
- Material Flammability Rating
- UL94 V-0
- Orientation
- Straight
- Fastening Method
- CONNECTOR
- Weight
- 118.000014g
- HTS Kodu
- 8536.69.40.40
- Akım Değeri
- 8A
- Fabrika Tedarik Süresi
- 4 Weeks
- Yayın Yılı
- 2011
- Insulation Height
- 0.862 21.89mm
- ECCN Kodu
- EAR99
- Terminal Stili
- Solder
- Yükseklik
- 25.3mm
- Voltageiec
- 320V
- Max Current Rating
- 8A
