Volume pricing
- 1+ pcs$5.48
- 10+ pcs$5.17
- 100+ pcs$4.88
- 500+ pcs$4.60
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

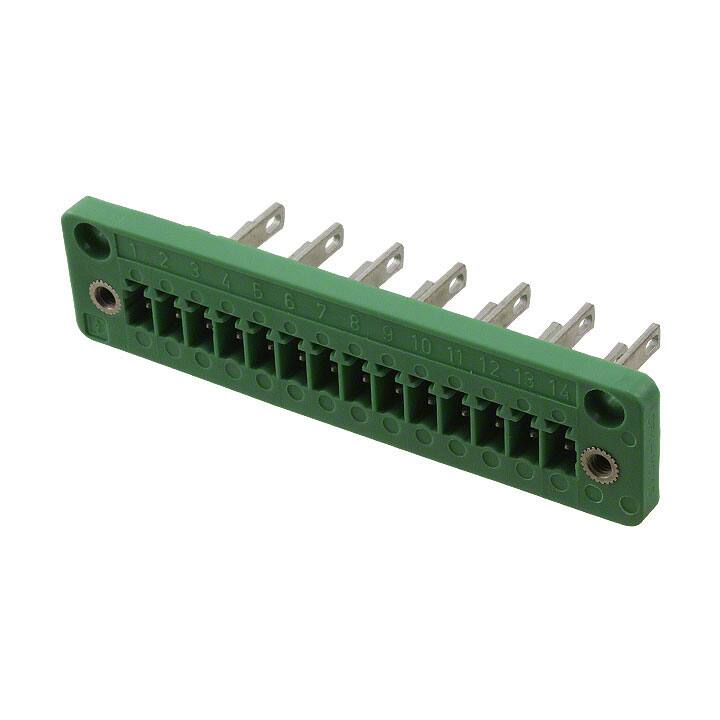

Specifications
- Terminal And Terminal Block Type
- STRIP TERMINAL BLOCK
- Genişlik
- 2.667 67.73mm
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Nominal Gerilim
- 160V
- Renk
- Green
- Gerilim
- 300V
- Montaj
- Wall
- Özellikler
- Threaded Mating Lock
- Number Of Decks
- 1
- Contact Materials
- Tin
- Wire Gauge Min
- 28 AWG
- Rear Panel Wire Connection
- Quick Connect - 0.110 (2.80mm), Solder Eyelet
- Safety Approval
- UL
- Uzunluk
- 67.73mm
- Orientation
- Straight
- Yükseklik
- 29.4mm
- Pitch
- 0.150 3.81mm
- Number Of Levels
- 1
- Terminal
- Solder
- Sıra Sayısı
- 1
- REACH Uyumluluk Kodu
- unknown
- Depth
- 20.4mm
- Additional Feature
- PA, 94V-0
- Yayın Yılı
- 2010
- Seri
- COMBICON DFK-MC
- Flammability Rating
- UL94 V-0
- Weight
- 198.446662g
- Max Current Rating
- 8A
- Akım
- 8A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Max
- 16 AWG
- Akım Değeri
- 8A
- Fabrika Tedarik Süresi
- 4 Weeks
- ECCN Kodu
- EAR99
- Panel Mount Type
- Screw Mount - Front Flange
- RoHS Durumu
- RoHS Compliant
- Connector Type
- Socket
- Front Panel Wire Connection
- Header, Male Pins
- Kurşunsuz
- Lead Free
